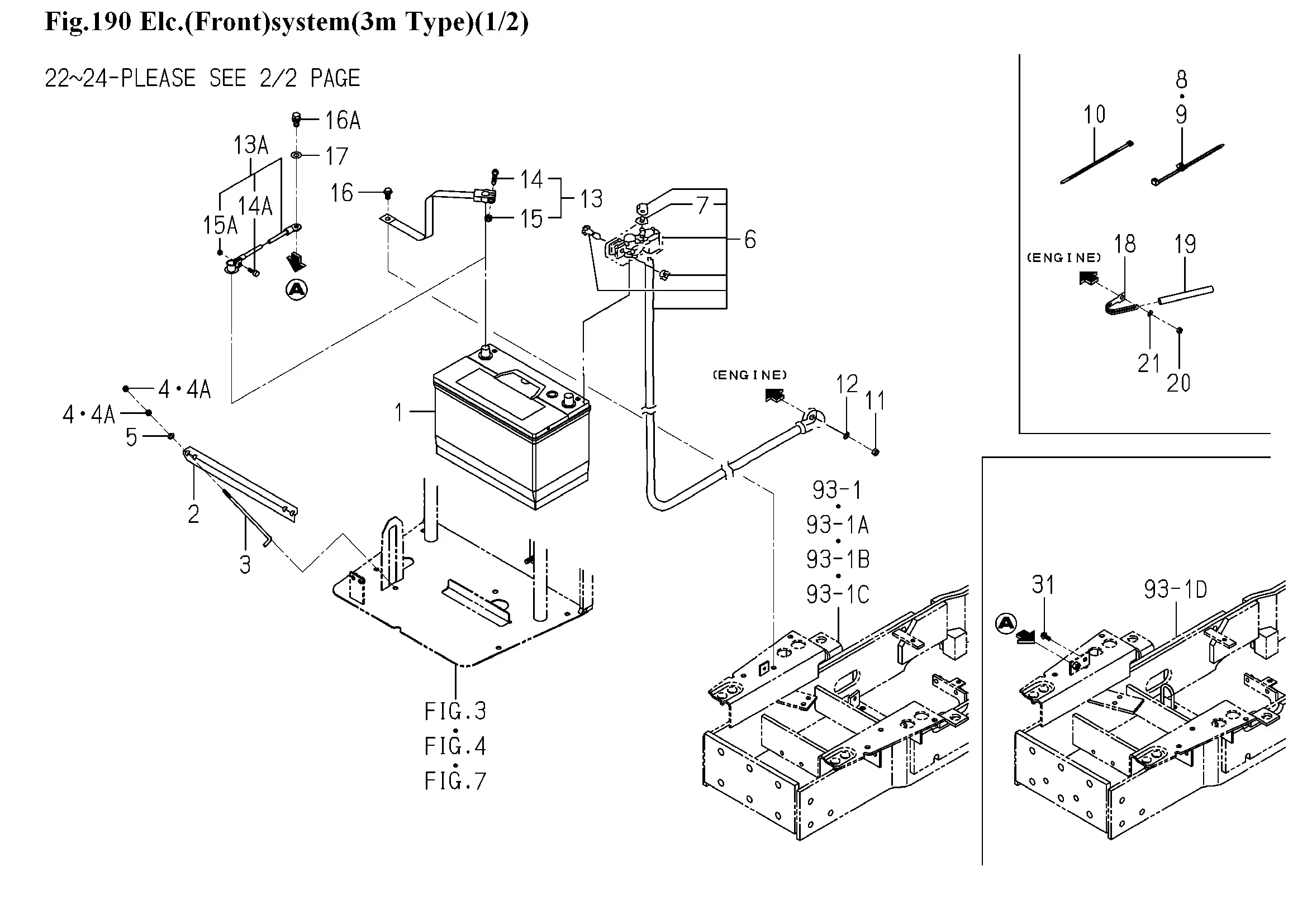

Batterie, Scheinwerfer (FH3MCYE4D/FH3MRE4 Type)
Ersatzteile (55 Teile)
1
Batterie, 12V, 95 Ah
2
1422-687-001-10
3
BOLT/BATTERY
4
V301-260-006-00
4A
1746-811-001-00
5
V411-260-006-00
6
Kabel, Batterie +
7
1696-650-243-00
8
1560-666-004-00
9
1560-666-004-00
10
BAND,WIRE/140
11
NUT/M8
12
WASHER,SP/M8
13
Masseband
13A
CABLE/EARTH ASSY
14
1568-650-004-10
14A
1725-112-212-00
15
1568-650-005-10
15A
1725-112-213-00
16
FLANGEBOLT/M8X16
16A
BOLT,S/M10X20
17
V411-260-010-00
18
CLAMP
19
TUBE/120
20
V301-260-006-00
21
V401-160-006-00
22
1674-652-200-00
22A
1674-652-200-10
23
1674-652-202-00
24
SCREW/M6X30
25
SPRING/HC016
26
Halter, Scheinwerfer, li
26A
1746-650-210-10
27
Halter, Schweinwerfer, re
27A
1746-650-220-10
28
V111-165-001-20
29
Hupe
29A
1740-680-530-10
29B
1740-680-530-20
30
FLANGEBOLT/M6X16
30A
1746-804-002-00
31
FLANGEBOLT/M6X16
32
BAND,WIRE/140
33
1342-402-006-00
34
Kabel, Temperaturfühler
35
1747-650-002-00
36
HARNESS,GLOW
37
RELAY/35A ASSY
38
V120-365-001-60
38A
1746-801-001-00
39
COVER/RELAY
40
Relais 4-pol., mit Kabel, 04K24
40A
1742-650-320-10
41
V120-365-001-60
41A
1746-801-001-00
