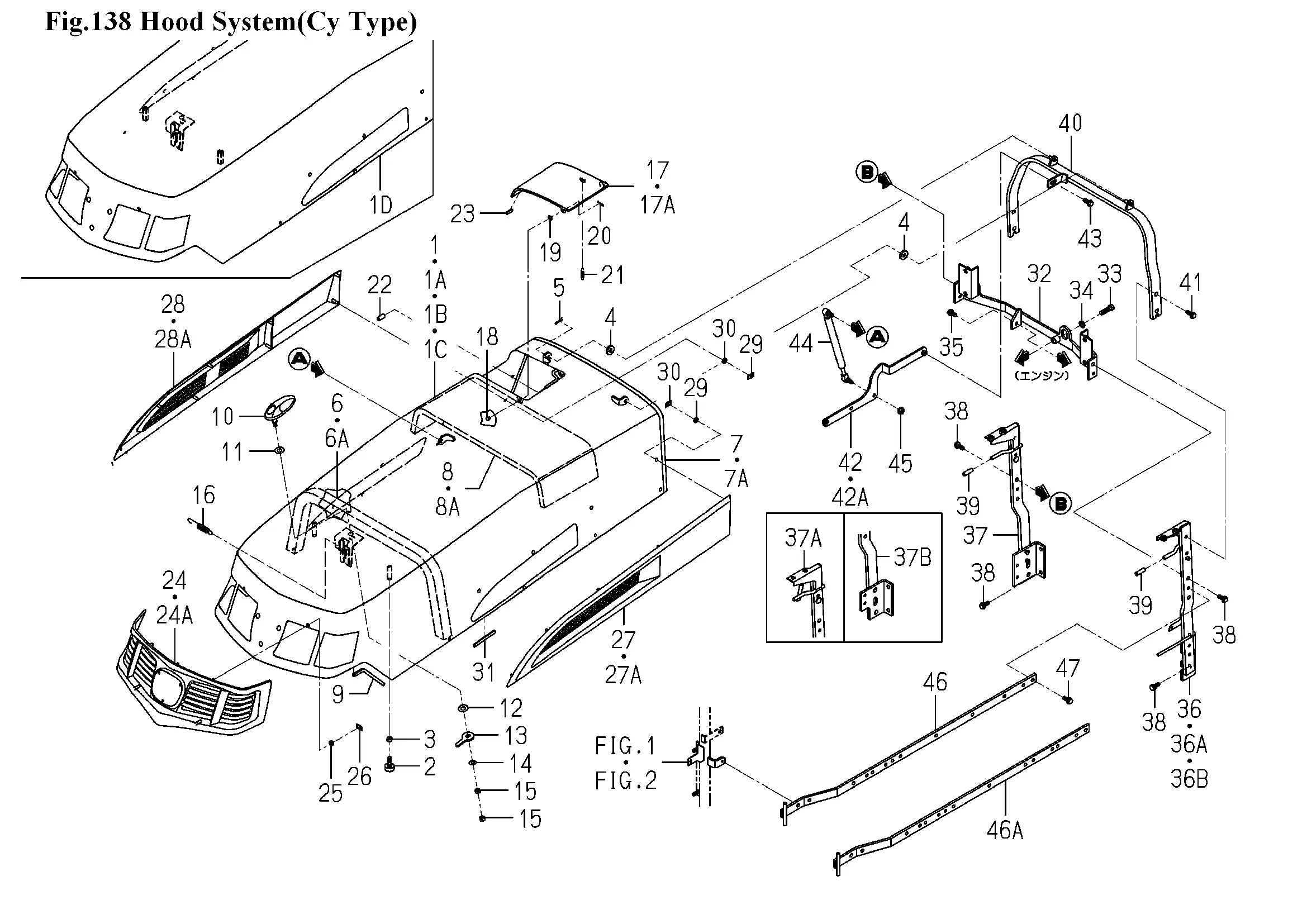

Motorhaube (FHMCYE4D/FH3MCYE4D/FQCYE4D Type)
Ersatzteile (64 Teile)
1
1734-601-200-30
1A
1734-601-200-40
1B
Motorhaube
1C
1734-601-200-60
1D
1734-601-200-70
2
1421-602-005-10
3
NUT/M8/7T
4
CUSHION/RUBBER/10X25
5
PIN/SNAP
6
Dichtung
6A
1734-601-006-10
7
Kantenschutz
7A
Kantenschutz
8
1734-601-052-10
8A
Dämmmatte
9
TRIM/150
10
Handgriff
11
WASHER/12X25X02
12
3610-440-018-00
13
ARM/PLATE
14
WASHER,PL/M8
15
NUT/M8
16
SPRING/HE089
17
1729-601-220-10
17A
COVER COMP
18
PIN/06X07
19
V411-260-006-00
20
PIN/SNAP
21
SPRING/HE036
22
TUBE/06X10X20
23
TRIM/20
24
Abdeckung, Motorhaube
24A
1729-601-001-20
25
WASHER/6X14X3
26
NUT,SPEED/M6
27
Leiste, li
27A
1734-601-001-10
28
1734-601-002-00
28A
Leiste, re
29
WASHER/6X14X3
30
NUT,SPEED/M6
31
TRIM/85
32
1734-601-300-00
33
V203-361-003-50
34
WASHER,SP/M10
35
FLANGEBOLT/M8X16
36
1734-601-310-00
36A
1734-601-310-10
36B
1734-601-310-20
37
1734-601-320-00
37A
1734-601-320-10
37B
1734-601-320-20
38
V231-360-802-00
39
TUBE/07X09X30
40
1729-601-240-10
41
V231-360-802-00
42
1734-601-250-20
42A
1734-601-250-30
43
V231-360-802-00
44
DUMPER/HOOD ASSY
45
Kombimutter-M8
46
1734-601-260-00
46A
1734-601-260-10
47
V231-360-802-00
