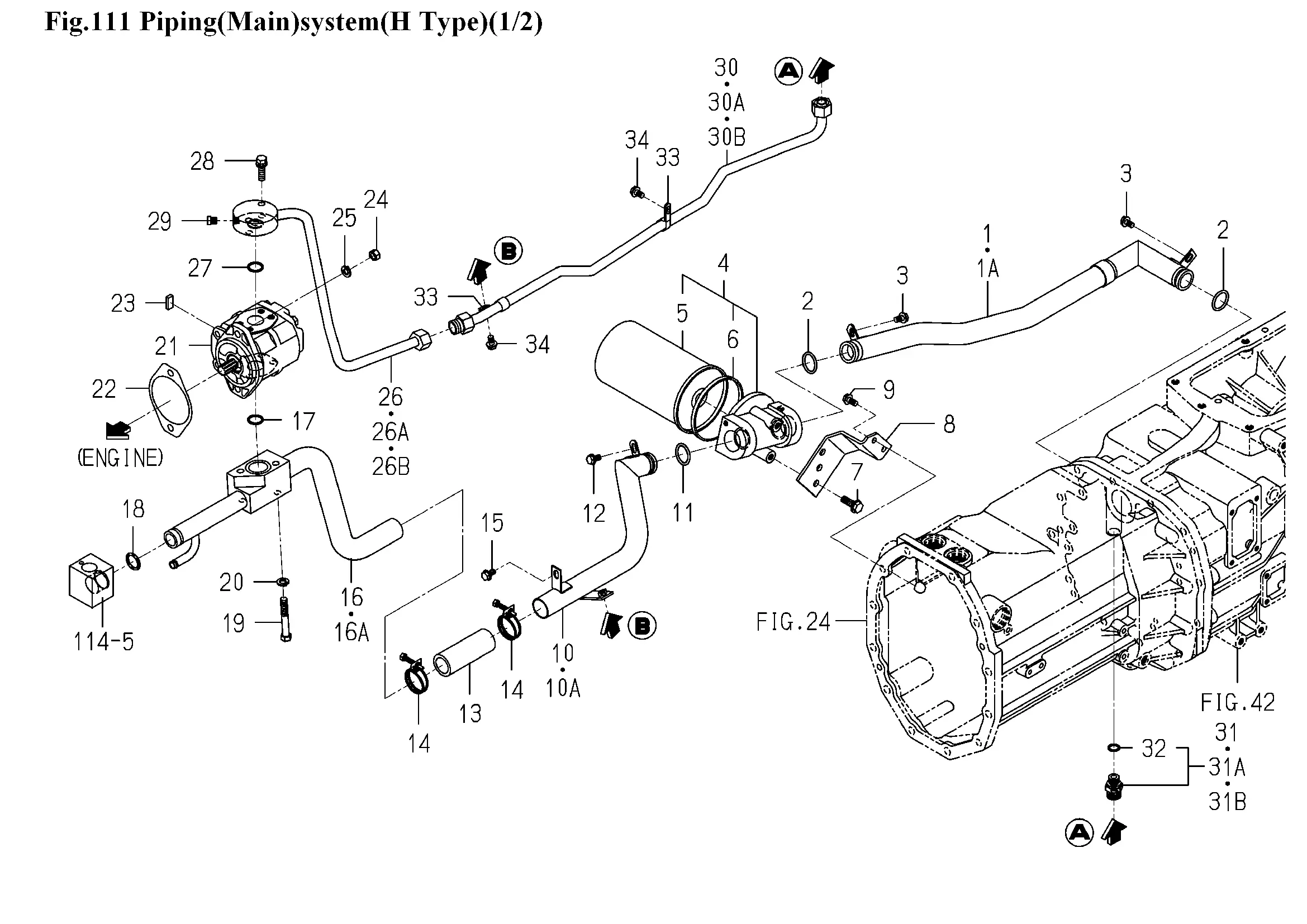

Hydraulikfilter, Leitungen (FHMCYE4D Type)
Ersatzteile (106 Teile)
1
Leitung
1A
1742-508-210-30
2
O-RING/1A,P28
3
V231-360-801-20
4
Filterträger
5
Hydraulikfilter
6
Dichtung
7
V231-361-002-50
8
1742-508-005-00
9
FLANGEBOLT/M8X16
10
Leitung
10A
1742-508-220-30
11
O-RING/1A,P28
12
V231-360-801-20
13
Verbindungsschlauch
14
CLAMP/WIRE/36-44
15
V231-360-801-20
16
1744-508-220-00
16A
PIPE/SUC/FRONT COMP
17
O-RING/1B,P34
18
RING/O
19
V201-361-007-00
20
WASHER,SP/M10
21
Hydraulikpumpe
22
GASKET/PUMP
23
Dichtung
24
NUT/M10
25
WASHER,SP/M10
26
1744-508-240-00
26A
1744-508-240-10
26B
Hydraulikleitung
27
O-RING/1B,P20
28
BOLT,S/M10X35/7T
29
PLUG/SCREW/SEAL
30
Hydraulikleitung, Druck
30A
1742-508-310-10
30B
1742-508-310-20
31
Adapter, 3/8"
31A
1729-508-290-10
31B
1729-508-290-20
32
O-RING/1B,P14
33
1675-508-003-00
34
V231-360-801-20
35
Ventilblock
35A
K200-114-000-20
35B
K200-114-000-30
36
Ventil
36A
VALVE/PRV/B ASSY
37
O-RING/1B,P20
38
O-RING/AS568/013
39
O-RING/AS568/014
40
O-RING/AS568/015
41
Ventil
41A
K200-114-100-10
42
O-RING/1B,P20
43
O-RING/1B,S16
43A
O-RING/1B,S16
44
FILTER/LINE/12X18X15
45
PLUG/SCREW/SEAL
46
Ventil
47
O-RING/1B,P20
48
O-RING/1B,P10A
49
O-RING/1B,P12
50
O-RING/1B,P14
51
Leitung
51A
1742-508-270-10
51B
1742-508-270-20
52
Adapter, 3/8"
52A
1729-508-290-10
52B
1729-508-290-20
53
O-RING/1B,P14
54
Steuerventil
55
Abdeckung
56
V211-260-806-50
57
V211-260-805-00
58
VALVE,RELIEF ASSY
59
O-RING/1B,P12
60
O-RING/1B,P18
61
Ventil
61A
K231-008-000-20
62
O-RING/1B,P10A
63
RING/BACK UP
64
Manschette 11x21x3
64A
COLLAR/11X21X03
65
Sicherungsring
65A
RING/SNAP
66
SEAL,DUST
67
O-RING/1B,P22
68
O-RING/1B,P16
69
NUT/M10
70
Welle
70A
1568-507-001-10
71
COVER/SHAFT COMP
72
V201-260-802-00
73
NUT/M8
74
KNOB
75
Schraube M6x35 DIN 933
75A
SCREW/M6X40
76
V401-160-006-00
77
PIPE/PTO/H COMP
78
ADAPTOR/PF1/4 ASSY
79
O-RING/1B,P11
80
ADAPTER/L/PF1/4 ASSY
81
O-RING/1B,P11
82
HOLDER/10
83
V231-360-801-20
