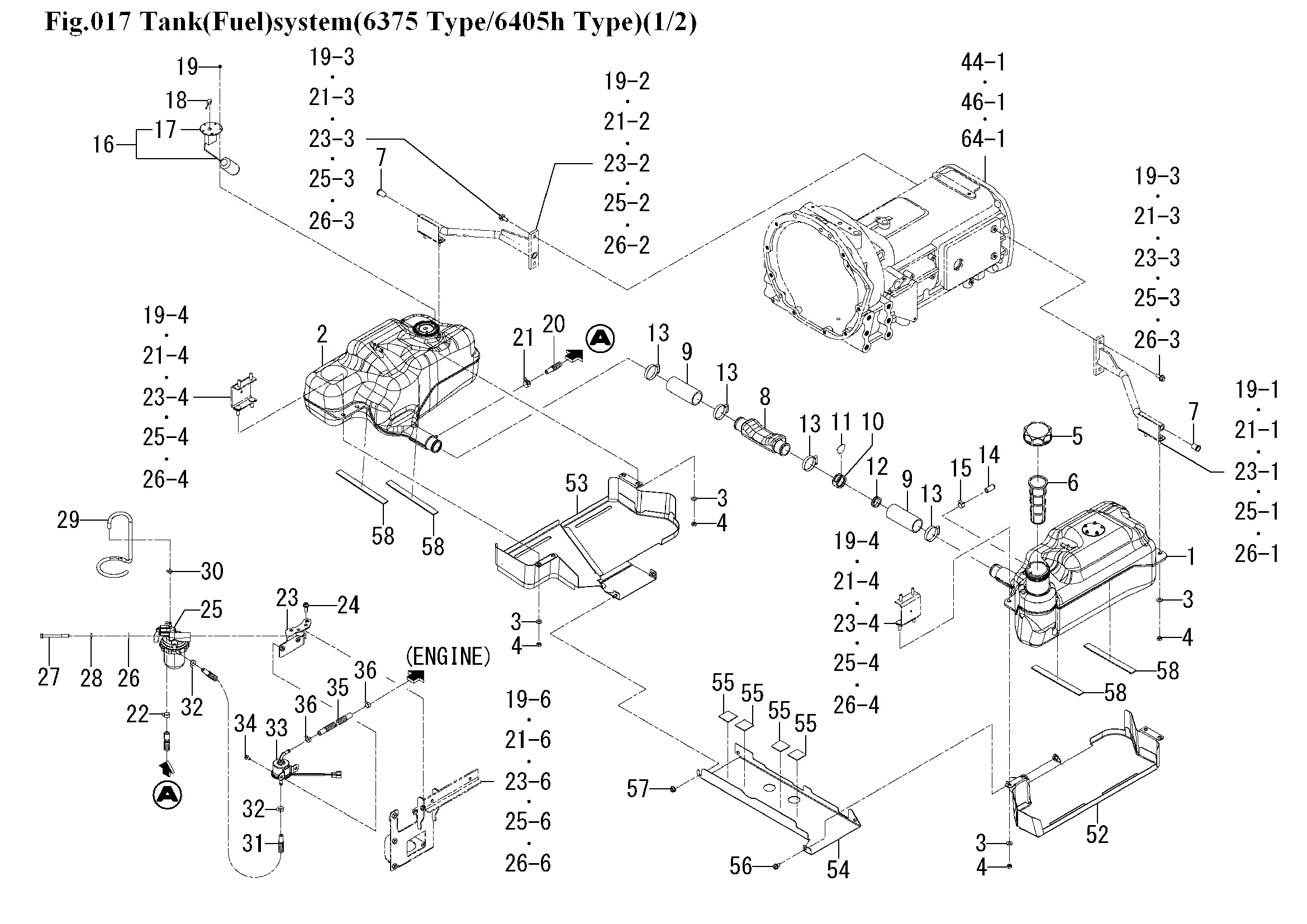

Tank
Ersatzteile (58 Teile)
1
TANK/FUEL/LH
2
TANK/FUEL/RH
3
WASHER,PL/M8
4
1719-312-001-00
5
CAP/FUEL ASSY
6
FILTER/FUEL
7
CAP,BLANK/M16
8
PIPE/FUEL/UNDER
9
1801-111-007-00
10
1757-111-027-30
11
1757-111-028-30
12
1817-111-002-00
13
1696-508-002-00
14
1518-111-006-00
15
CLIP/HOSE/14.7-15.9
16
GAUGE/FUEL ASSY
17
PACKING/RUBBER
18
HARNESS/FUEL ASSY
19
V360-260-004-00
20
1815-111-450-00
21
J062-138-148-00
22
CLIP/HOSE/14.7-15.9
23
1815-111-430-00
24
V231-360-802-00
25
FILTER/FUEL ASSY
26
WASHER,PL/M8
27
BOLT/M8X80
28
WASHER,SP/M8
29
6909-913-849-00
30
CLIP/HOSE/8.7-9.3
31
1815-111-460-00
32
J062-138-148-00
33
1703-105-210-10
34
FLANGEBOLT/M6X12
35
HOSE/FUEL/1500 ASSY
36
CLIP/HOSE/12.6-13.4
37
HOSE/FUEL/900 ASSY
38
J062-076-082-00
39
1792-111-015-10
40
HOSE/FUEL/300
41
J062-138-148-00
42
1342-402-006-00
43
HOSE/FUEL/70
44
1757-111-570-00
45
CLIP/HOSE/14.7-15.9
46
CLIP/HOSE/14.7-15.9
47
1801-111-260-20
48
JOINT/T
49
J062-138-148-00
50
BAND,WIRE/140
51
HOLDER/JE/9-9
52
1815-111-300-00
53
1815-111-310-00
54
COVER/UNDER/HST
55
CUSHION,RUBBER
56
V231-360-801-20
57
Kombimutter-M8
58
PLATE,RUBBER
