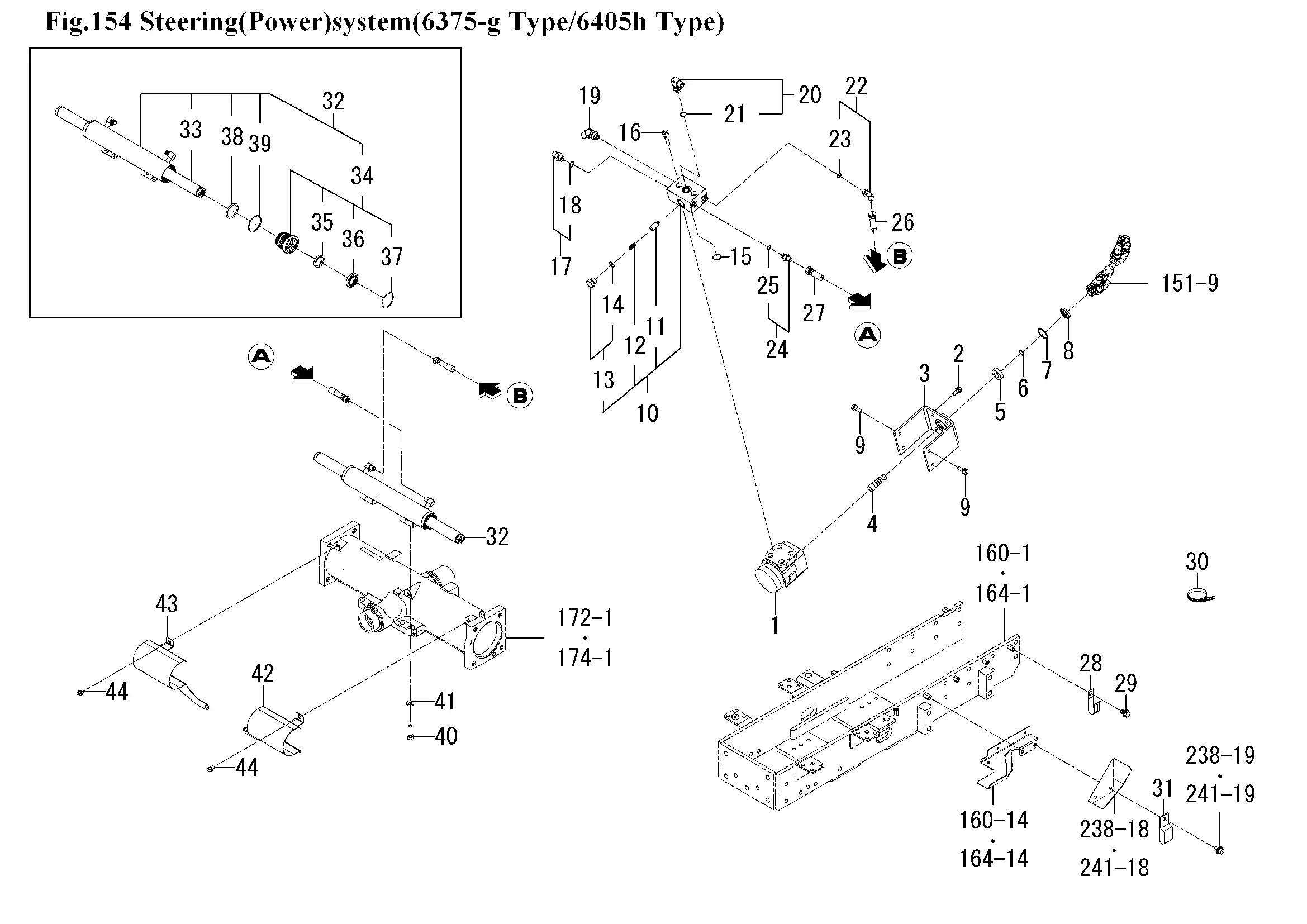

Lenkzylinder
Ersatzteile (44 Teile)
1
CONTROLER/STEERING
2
BOLT,S/M10X20/7T
3
1815-407-210-00
4
SHAFT
5
BEARING,RB/6003ZZ
6
RING,SNAP/17 C
7
RING,SNAP/35 C
8
SEAL,OIL/VC17355
9
BOLT,S/M10X25/7T
10
VALVE/RELIEF ASSY
11
K220-002-002-00
12
SPRING/HC024
13
PLUG/G3/8 ASSY
14
O-RING/1B,P14
15
O-RING/1B,P20
16
V220-541-004-00
17
ADAPTER/PF3/8 ASSY
18
O-RING/1B,P14
19
ADAPTER (G3/8B-G3/8B
20
ADAPTER/L/G3/8 ASSY
21
O-RING/1B,P14
22
ELBOW/45DEG ASSY
23
O-RING/1B,P11
24
ADPTER/G1/4.1/4
25
O-RING/1B,P11
26
1817-407-230-10
27
1794-407-200-10
28
HOLDER/JE/9-9
29
V231-360-801-20
30
BAND,WIRE/140
31
1560-104-005-50
32
CYLINDER/015 ASSY
33
ROD/PISTON/013 SET
34
COVER/ROD/013 SET
35
PACKING/ROD
36
SEAL/DUST/DKBI/30
37
RING/SNAP
38
O-RING/1B,P40
39
O-RING/1B,S48
40
BOLT
41
WASHER,SP/M12
42
1801-407-002-10
43
1801-407-003-10
44
V231-360-801-20
