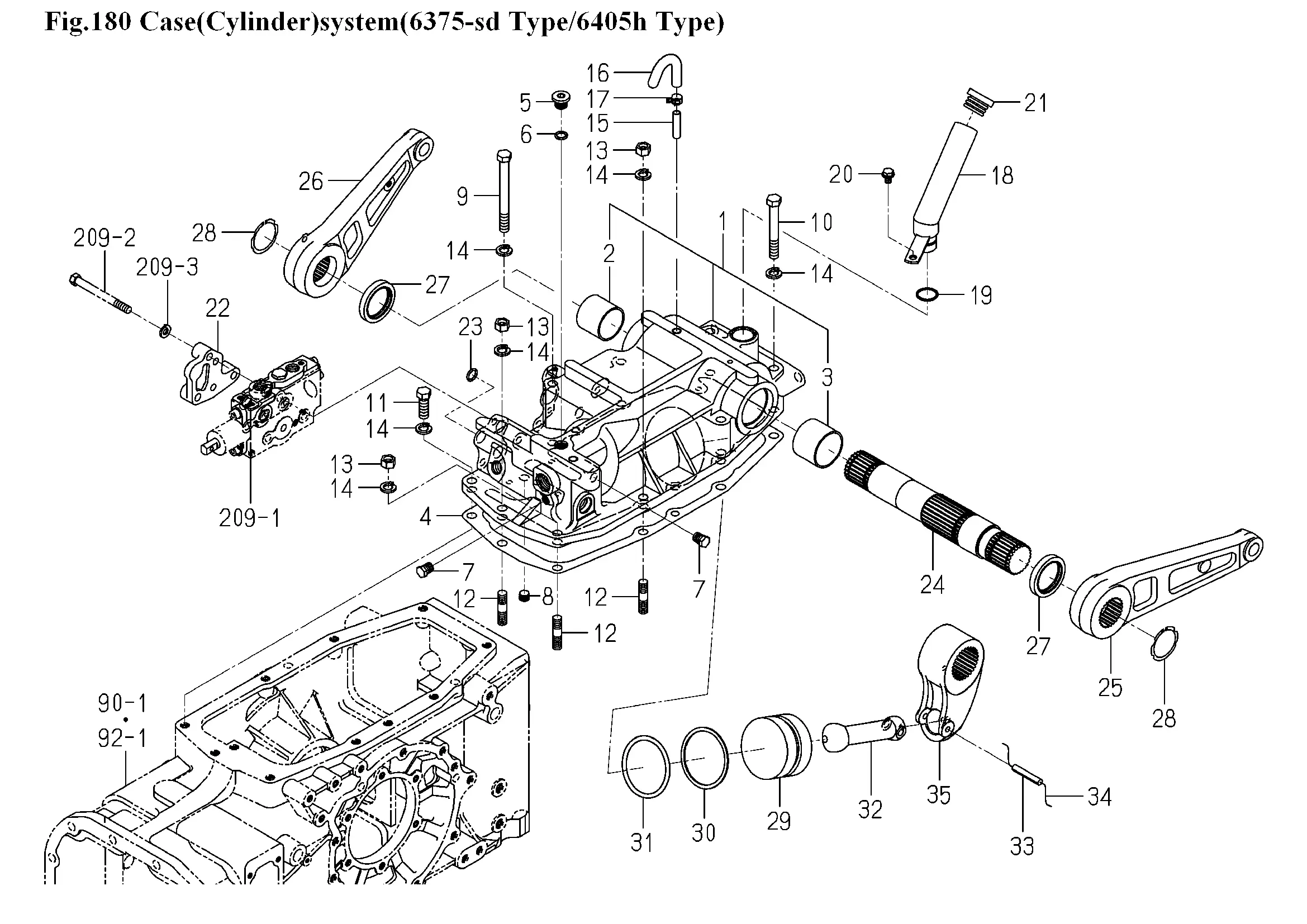

Heckhydraulik
Ersatzteile (34 Teile)
1
1742-501-200-20
2
BUSH/45X50X42
3
BUSH/50X55X42
4
GASKET/CASE/CYLINDER
5
PLUG(G3/8)
6
O-RING/1B,P14
7
PLUG/SCREW/SEAL
8
PLUG/SCREW/SEAL
9
V201-361-212-00
10
BOLT/M12X90/7T
11
V201-361-203-50
12
STUD/M12X32/7T
13
V304-460-012-00
14
WASHER,SP/M12
15
PIPE,BREATHER
16
1716-501-006-10
17
J062-138-148-00
18
1801-501-200-00
19
O-RING/1A,S26
20
V231-360-801-20
21
CAP/OIL(30)
22
COVER
23
O-RING/1B,P14
24
BAR
25
ARM/LIFT/LH
26
ARM/LIFT/RH
27
SEAL,OIL/TC45609
28
V706-140-045-00
29
PISTON
30
RING
31
O-RING/1B,P75
32
ROD
33
V580-140-805-00
35
1837-501-001-10
