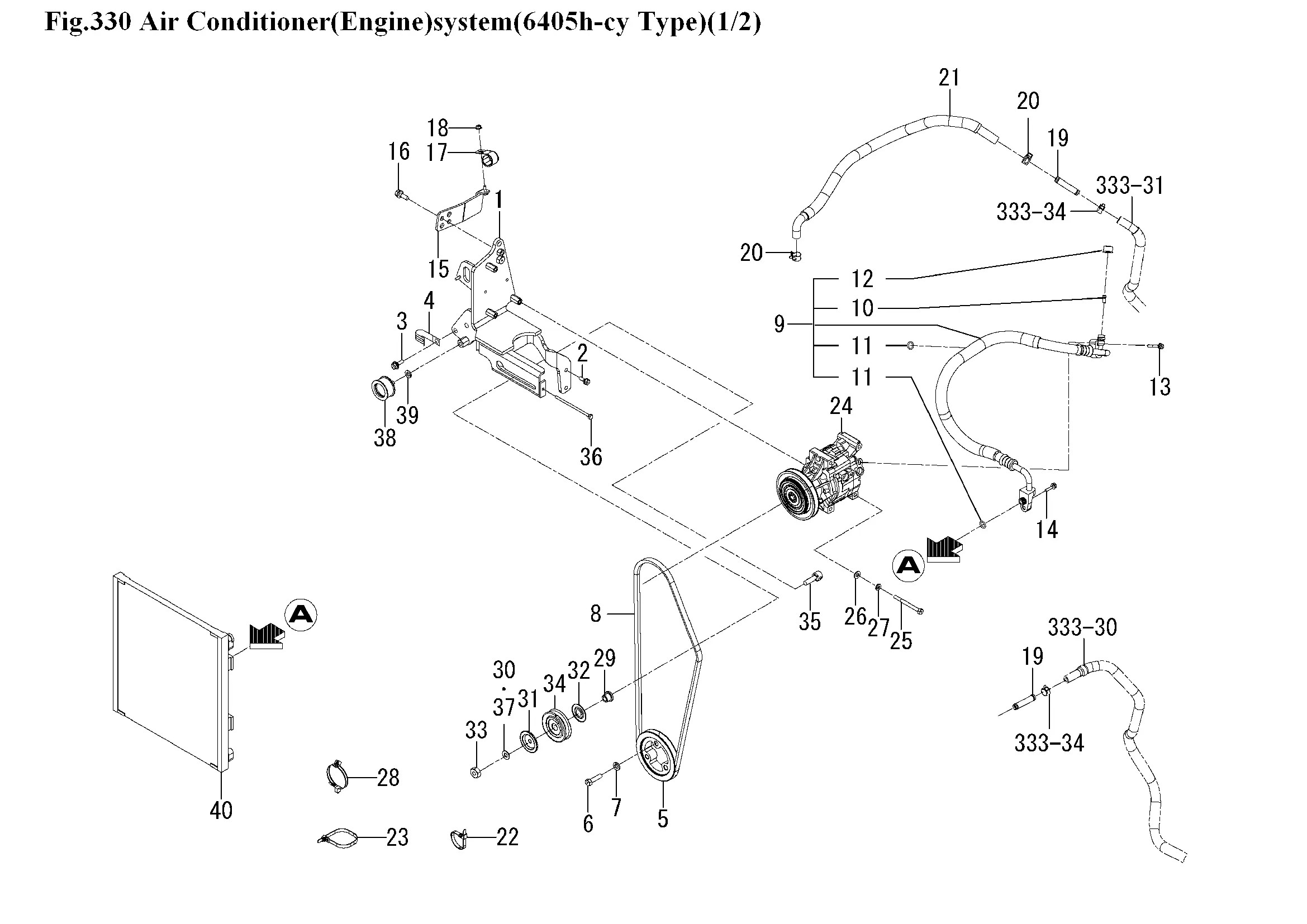

Kompressor, Klimaanlage
Ersatzteile (68 Teile)
1
1815-780-200-10
2
V211-560-802-00
3
V211-660-802-00
4
HOLDER/JE/9-9
5
PULLY/V/120
6
V203-361-003-50
7
WASHER,SP/M10
8
BELT/V/MP/53
9
1801-780-210-10
10
1729-780-512-00
11
O-RING
12
PLUG
13
V210-360-604-50
14
BOLT/SP
15
1797-780-250-20
16
V211-261-002-50
17
1792-780-004-00
18
NUT/WASHER/M6
19
1800-780-007-00
20
CLIP/HOSE/18-22
21
HOSE/HEATER/L/600
22
BAND,WIRE/140
23
1342-402-006-00
24
3824-248-990-20
25
V201-360-808-00
26
WASHER,PL/M8
27
WASHER,SP/M8
28
1560-666-004-00
29
1599-782-531-10
30
WASHER/W
31
COVER/G1
32
COVER/G2
33
NUT
34
1599-782-540-10
35
SHAFT
36
BOLT/M06X110
37
V411-260-010-00
38
PULLEY/FT/45X20 ASSY
39
WASHER,SP/M10
40
CONDENSER ASSY
41
BOLT/SP
42
1792-780-290-10
43
1792-780-280-40
44
1815-802-001-00
45
1757-780-002-00
46
1757-780-003-00
47
WASHER/6X24X2
48
1815-802-002-00
49
RECEIVER/DRYER ASSY
50
BOLT/SP
51
1729-780-250-10
52
1759-308-001-00
53
NET/CONDENSER/310X35
54
JOINT/RECEIVER/LH
55
O-RING
56
BOLT/SP
57
PIPE/LIQUID ASSY
58
O-RING
59
BOLT/SP
60
BOLT/S
61
RAIL/NET/CONDENSER
62
1815-802-001-00
63
SCREW/SP
64
PIPE/SUCTION ASSY
65
1729-780-512-00
66
O-RING
67
PLUG
68
V210-360-604-50
