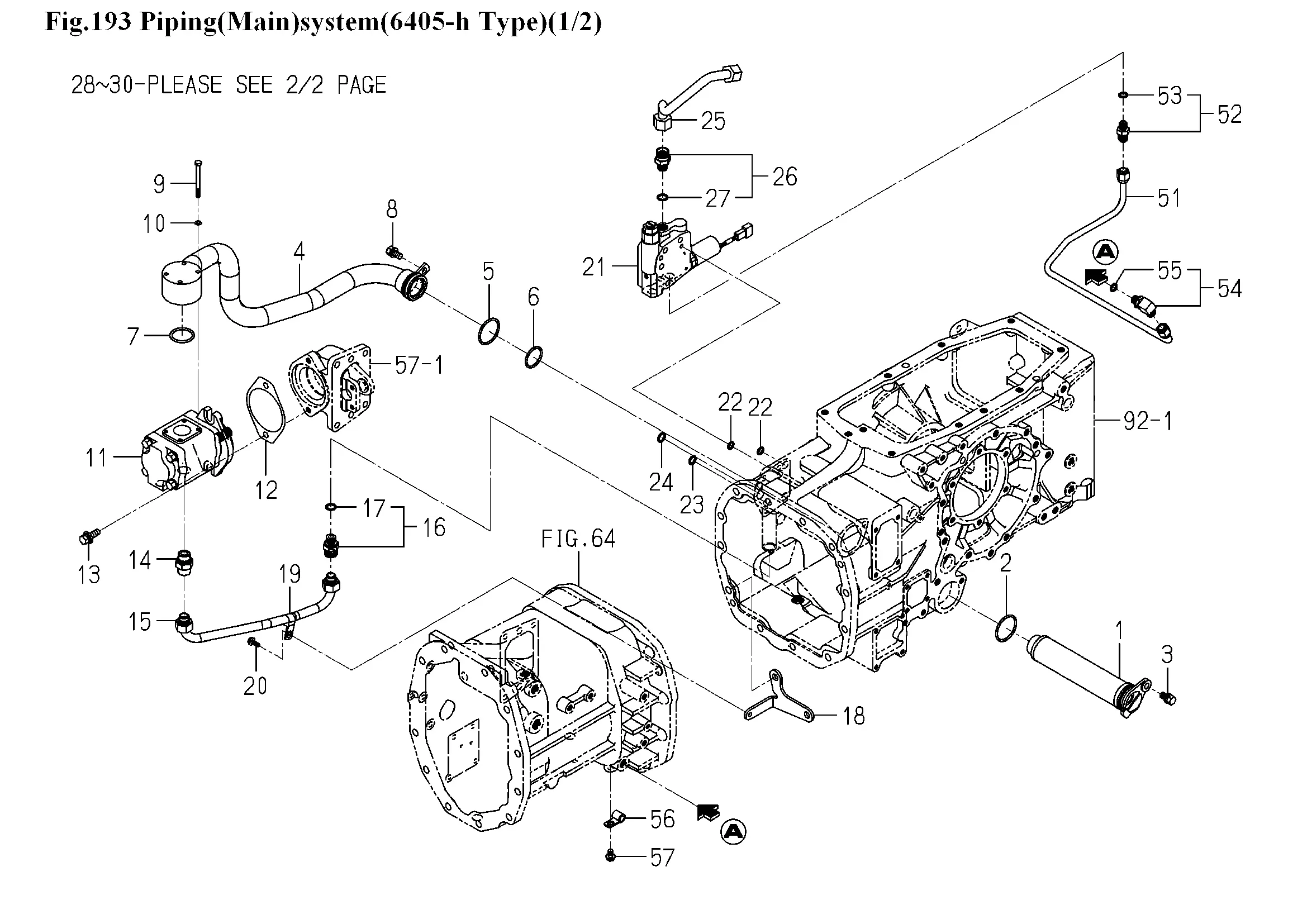

Hydraulikfilter, Leitungen
Ersatzteile (57 Teile)
1
FILTER/SUCTION/400
2
O-RING/1A,G45
3
BOLT,SP/M10X25
4
PIPE/SUC/H COMP
5
O-RING/1A,G45
6
O-RING/1A,G35
7
O-RING/1B,P36
8
BOLT,S/M10X20
9
V200-360-607-00
10
V401-160-006-00
11
PUMP/GEAR/11-6. ASSY
12
GASKET/PUMP
13
BOLT,SP/M10X30/7T
14
ADAPTER/G1/2 ASSY
15
PIPE/DEL/MIN/H COMP
16
1729-508-290-20
17
O-RING/1B,P14
18
1801-508-051-00
19
1675-508-003-00
20
FLANGEBOLT/M8X16
21
K200-251-000-20
22
O-RING/1B,P10A
23
O-RING/1B,P12
24
O-RING/1B,P14
25
1742-508-270-20
26
1729-508-290-20
27
O-RING/1B,P14
28
VALVE/CONTROL/107
29
1742-508-009-10
30
V211-260-806-50
31
V211-260-805-00
32
VALVE,RELIEF ASSY
33
O-RING/1B,P12
34
O-RING/1B,P18
35
K231-008-000-20
36
O-RING/1B,P10A
37
RING/BACK UP
38
COLLAR/11X21X03
39
RING/SNAP
40
SEAL,DUST
41
O-RING/1B,P22
42
O-RING/1B,P16
43
NUT/M10
44
1568-507-001-10
45
COVER/SHAFT COMP
46
V201-260-802-00
47
NUT/M8
48
KNOB
49
SCREW/M6X40
50
V401-160-006-00
51
PIPE/PTO/H COMP
52
ADAPTOR/PF1/4 ASSY
53
O-RING/1B,P11
54
ADAPTER/L/PF1/4 ASSY
55
O-RING/1B,P11
56
HOLDER/10
57
V231-360-801-20
