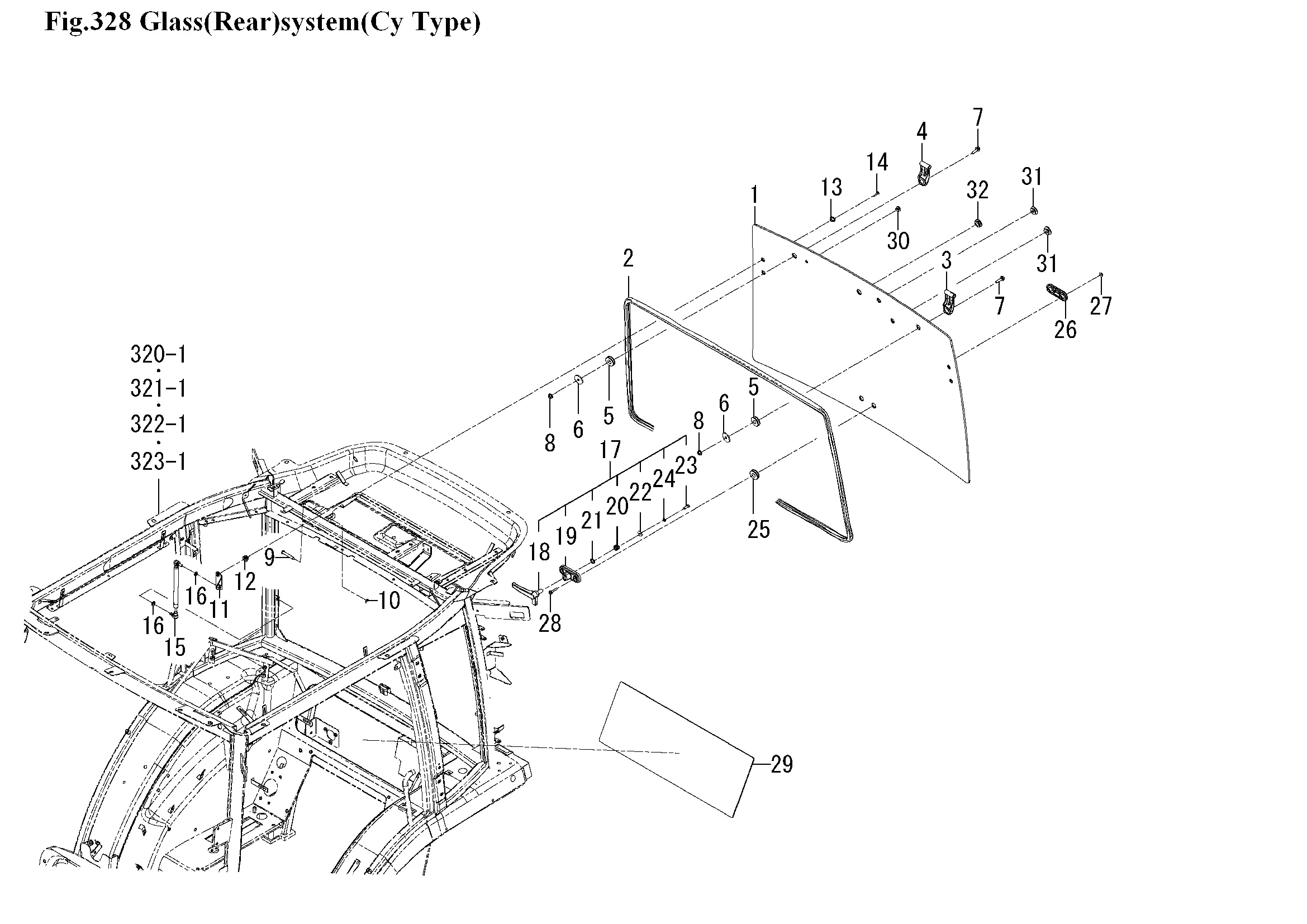

Heckscheibe, Kabine
Ersatzteile (32 Teile)
1
GLASS/REAR
2
1792-742-002-20
3
HINGE/REAR/LH
4
HINGE/REAR/RH
5
GROMMET/15X17X05
6
WASHER/09X35X02
7
FLANGEBOLT/M8X25
8
Kombimutter-M8
9
PIN/08X54
10
RING,RETANING/E07
11
PLATE COMP
12
GROMMET/10X12X05
13
SPACER/GLASS/M05
14
SCREW/TRUSS/M05X20
15
DAMPER/376/125N ASSY
16
WASHER,SP/M8
17
1719-742-230-10
18
HANDLE
19
1719-742-232-00
20
1719-742-233-00
21
1719-742-234-00
22
1719-742-235-10
23
1719-742-236-00
24
1719-742-237-00
25
GROMMET/15X17X05
26
1729-730-005-10
27
NUT,WASHER/M6
28
FLANGEBOLT/M6X30
29
1731-742-003-20
30
PLUG/08
31
PLUG/16
32
PLUG/19
