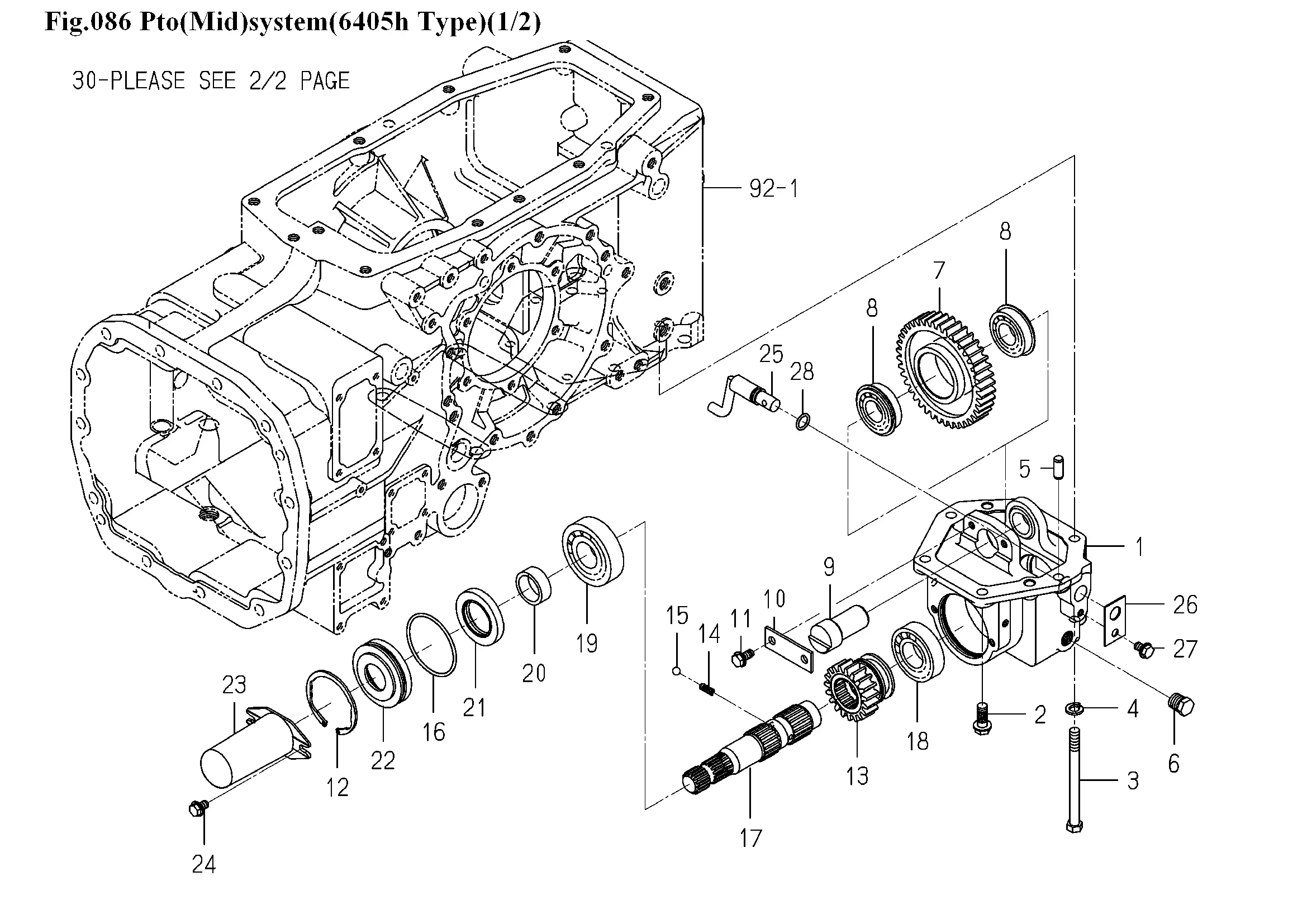

Zwischenachs PTO
Ersatzteile (47 Teile)
1
CASE/PTO
2
V231-361-002-50
3
V201-361-012-00
4
WASHER,SP/M10
5
PIN,ST,B/10X24
6
PLUG/SCREW/SEAL
7
GEAR/SPUR/40
8
BEARING,RB/6205NR
9
1742-229-004-00
10
PLATE
11
FLANGEBOLT/M8X16
12
RING,SNAP/R72
13
GEAR/SPUR/19
14
SPRING,SHIFTER
15
BALL,STEEL
16
O-RING
17
SHAFT/PTO/E3
18
BEARING,RB/6206
19
BEARING,RB/6306
20
SLEEVE
21
SEAL/OIL
22
METAL/SEAL
23
1444-314-009-10
24
V231-360-801-20
25
ARM/SHIFT/MID COMP
26
PLATE/I/30X50
27
V231-360-801-20
28
O-RING/1A,P14
29
ARM/PLATE/MID COMP
30
PIN,SPRING/6X25 W
32
1742-229-009-10
33
PIN/SNAP/B
34
WASHER,PL/M8
35
PIN,SPLIT/2X20
36
1742-229-210-10
37
3640-111-001-10
38
1815-229-400-00
39
PIN,SPRING/8X28 W
40
1815-229-410-00
41
BOLT,SP/M8X25
42
INSULATOR/LEVER/SUB
43
GRIP/MID/PTO
44
1815-662-002-10
45
BOLT,SP/M6X16
46
SWITCH/LIMIT ASSY
47
SCREW/M03X20
48
PLATE,SWITCH
