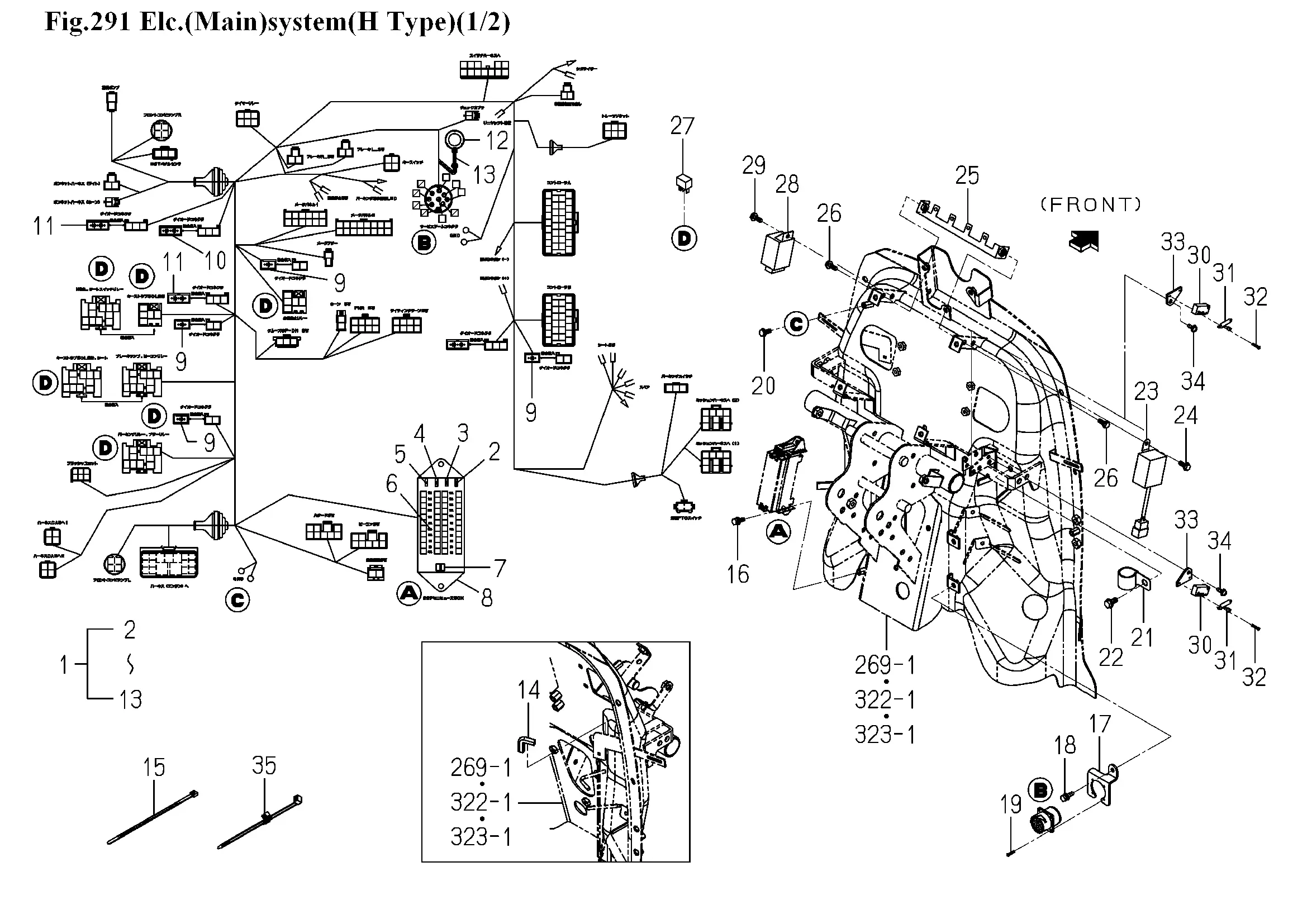

Schalter, Relais, Zündschloss
Ersatzteile (54 Teile)
1
HARNESS/MAIN/H/E4
2
FUSE/BLADE/32V20A
3
FUSE/BLADE/32V15A
4
FUSE/BLADE/32V10A
5
FUSE/BLADE/32V05A
6
FUSE,BLADE/32
7
TOOL/FUSE
8
1817-652-302-00
9
DIODE/3.0A
10
DIODE
11
DIODE/1.5A-3P ASSY
12
1800-652-202-00
13
1805-652-206-00
14
INSULATOR/55
15
BAND,WIRE/140
16
V210-360-602-00
17
1817-652-001-10
18
V210-360-602-00
19
SCREW,SP/M3X16
20
FLANGEBOLT/M6X16
21
1675-407-003-00
22
V231-360-801-20
23
UNIT/TIMER ASSY
24
FLANGEBOLT/M6X16
25
1817-650-310-00
26
FLANGEBOLT/M6X16
27
RELAY/5P ASSY
28
1739-681-220-20
29
FLANGEBOLT/M6X16
30
SWITCH ASSY
31
ACTUATOR ASSY
32
SCREW,SP/M3X16
33
1729-652-006-00
34
V120-365-001-60
35
1560-666-004-00
36
1817-652-610-10
37
FLANGEBOLT/M8X16
38
1757-730-004-00
39
SWITCH/ROTALY/E SET
40
RINGNUT
41
1729-652-273-00
42
KEY
43
LAMP/LED ASSY
44
1342-402-006-00
45
SWITCH ASSY
46
SWITCH/HAZARD ASSY
47
BULB/LAMP/14V60MA
48
SWITCH/BEACON ASSY
49
1342-402-006-00
50
SWITCH/EMERGENC ASSY
51
1815-652-310-30
52
SWITCH/FNR ASSY
53
SCREW,SEMS/M6X16
54
1342-402-006-00
