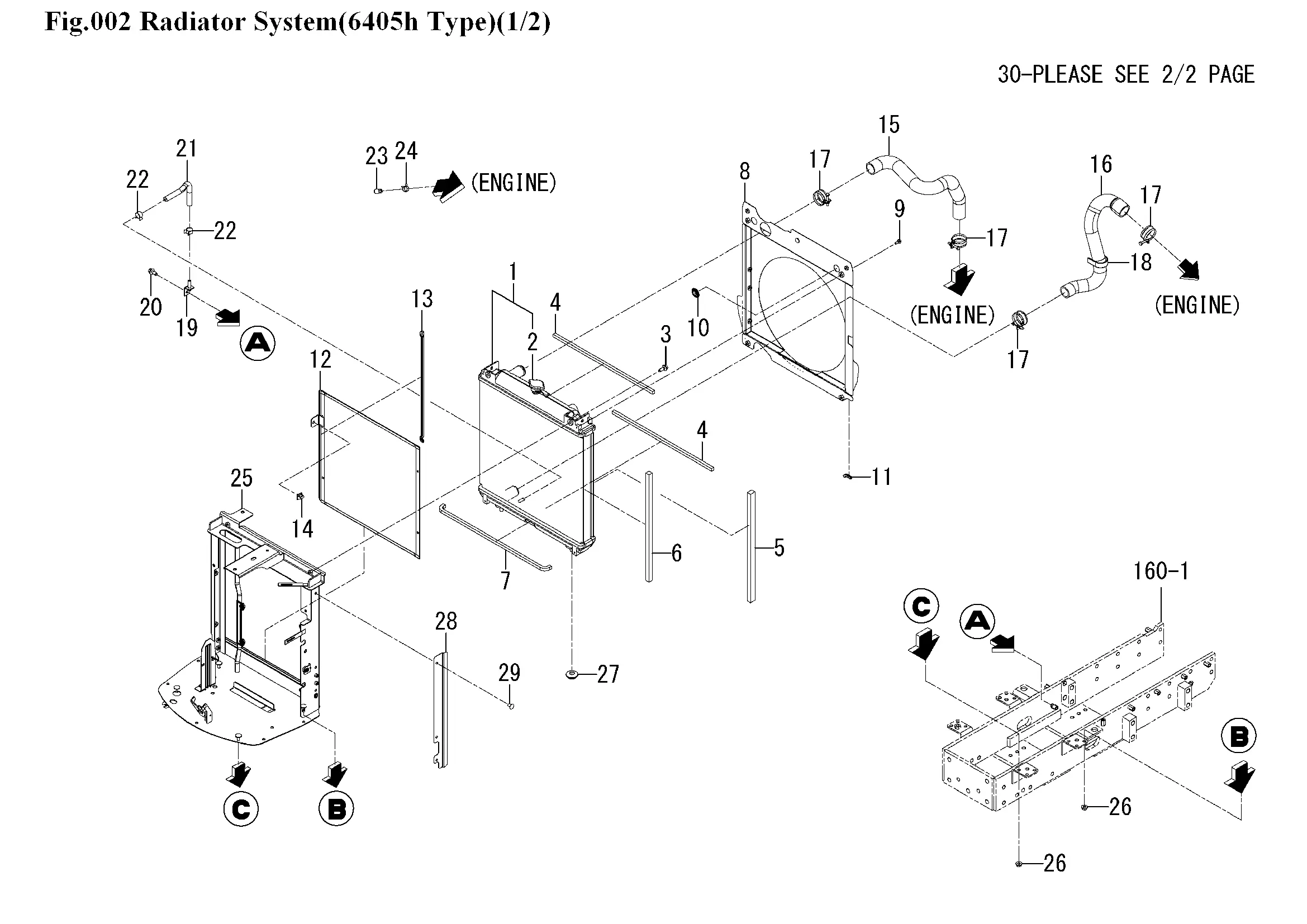

Kühler
Ersatzteile (46 Teile)
1
RADIATOR ASSY
2
CAP
3
1746-803-003-00
4
INSULATOR/10X10X450
5
INSULATOR/15X20X425
6
INSULATOR
7
INSULATOR
8
1818-102-220-20
9
1746-804-002-00
10
3670-272-001-00
11
INSULATOR/30
12
NET COMP
13
PAD/470
14
LATCH ASSY
15
HOSE/RADIATOR/INLET
16
HOSE/RADIATOR/OUTLET
17
CLAMP/WIRE/36-44
18
CLAMP
19
1817-102-320-00
20
BOLT,SP/M8X20
21
HOSE/230
22
CLIP/HOSE/14.7-15.9
23
CAP/8
24
J062-138-148-00
25
1815-102-500-10
26
1746-816-001-00
27
BUSH,LEVER
28
1815-102-005-10
29
CLIP(B)
30
1815-102-410-10
31
1746-817-001-00
32
WASHER,PL/M8
33
SPRING/HT020
34
1815-102-031-00
35
PIN/SNAP
36
RESERVETANK ASSY
37
CAP
38
PACKING
39
1690-102-214-00
40
1690-102-215-00
41
1690-102-216-00
42
HOSE/RUBBER
43
BAND,WIRE/140
44
1792-102-006-00
45
1746-804-003-00
46
1746-804-003-00
