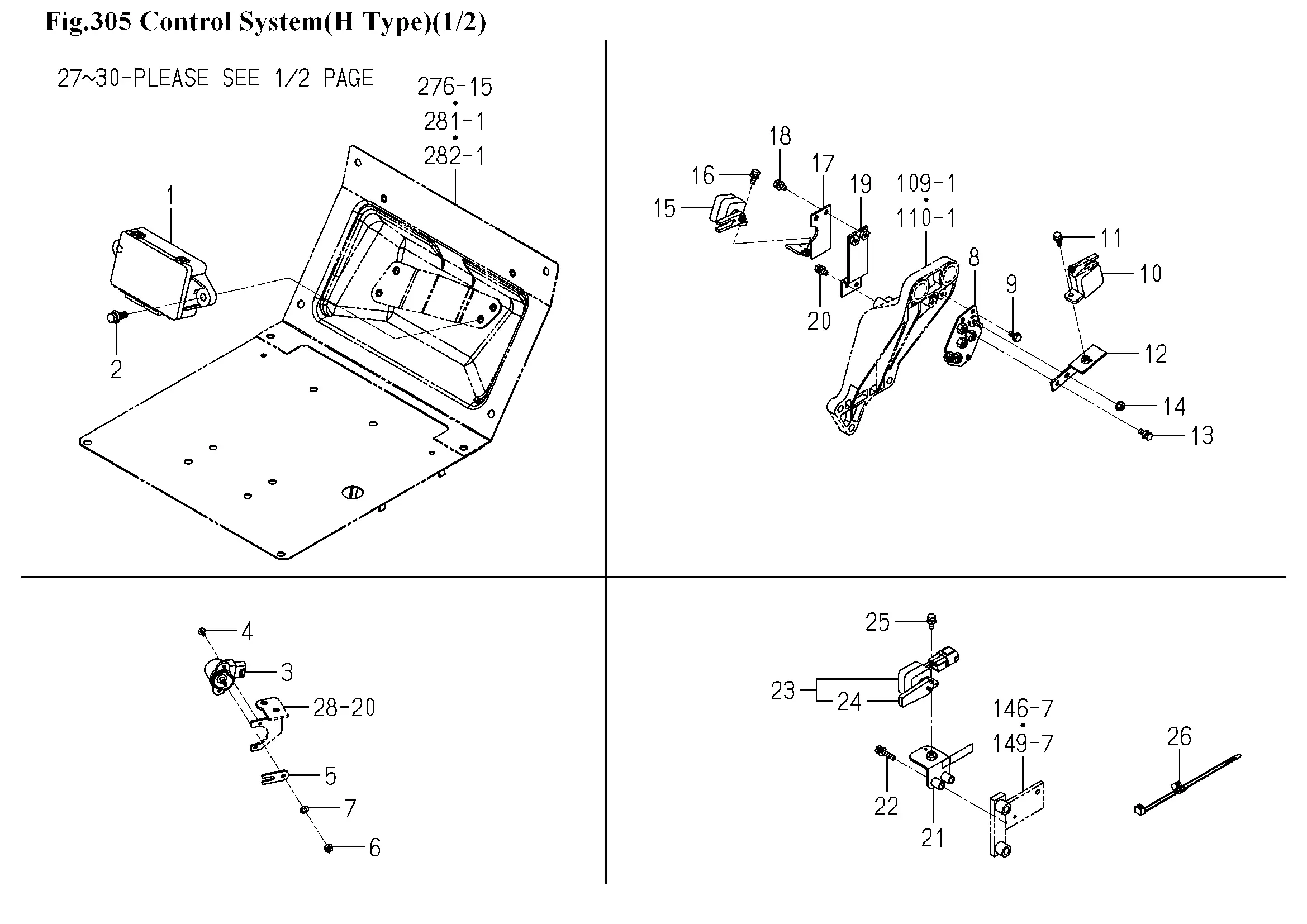

Steuereinheit, Blackbox Bordcomputer
Ersatzteile (39 Teile)
1
CONTROLLER/E4/H ASSY
2
BOLT,SP/M8X25
3
SENSOR/ANGLE/75 ASSY
4
SCREW,SP/M4X12
5
ARM/PLATE
6
V301-260-006-00
7
V401-160-006-00
8
1746-662-240-10
9
FLANGEBOLT/M6X12
10
1740-680-520-10
11
BOLT,SP/M6X16
12
1746-662-220-10
13
BOLT,SP/M6X16
14
NUT/WASHER/M6
15
1740-680-520-10
16
BOLT,SP/M6X16
17
1743-652-520-20
18
BOLT,SP/M6X16
19
1743-652-550-00
20
BOLT,SP/M6X16
21
BRACKET/SWITCH COMP
22
BOLT,SP/M6X30
23
1716-680-330-10
24
ARM
25
BOLT,SP/M6X16
26
1560-666-004-00
27
1815-662-350-00
28
BAND,WIRE/140
29
SWITCH/PTO ASSY
30
Standlichtschalter
31
SWITCH/VR ASSY
32
1675-695-005-00
33
SORING
34
Drehknopf
35
SWITCH/MOMENTAR ASSY
36
HARNESS/SPEED ASSY
37
V111-163-001-20
38
WASHER,SP/M3
39
1807-652-003-00
