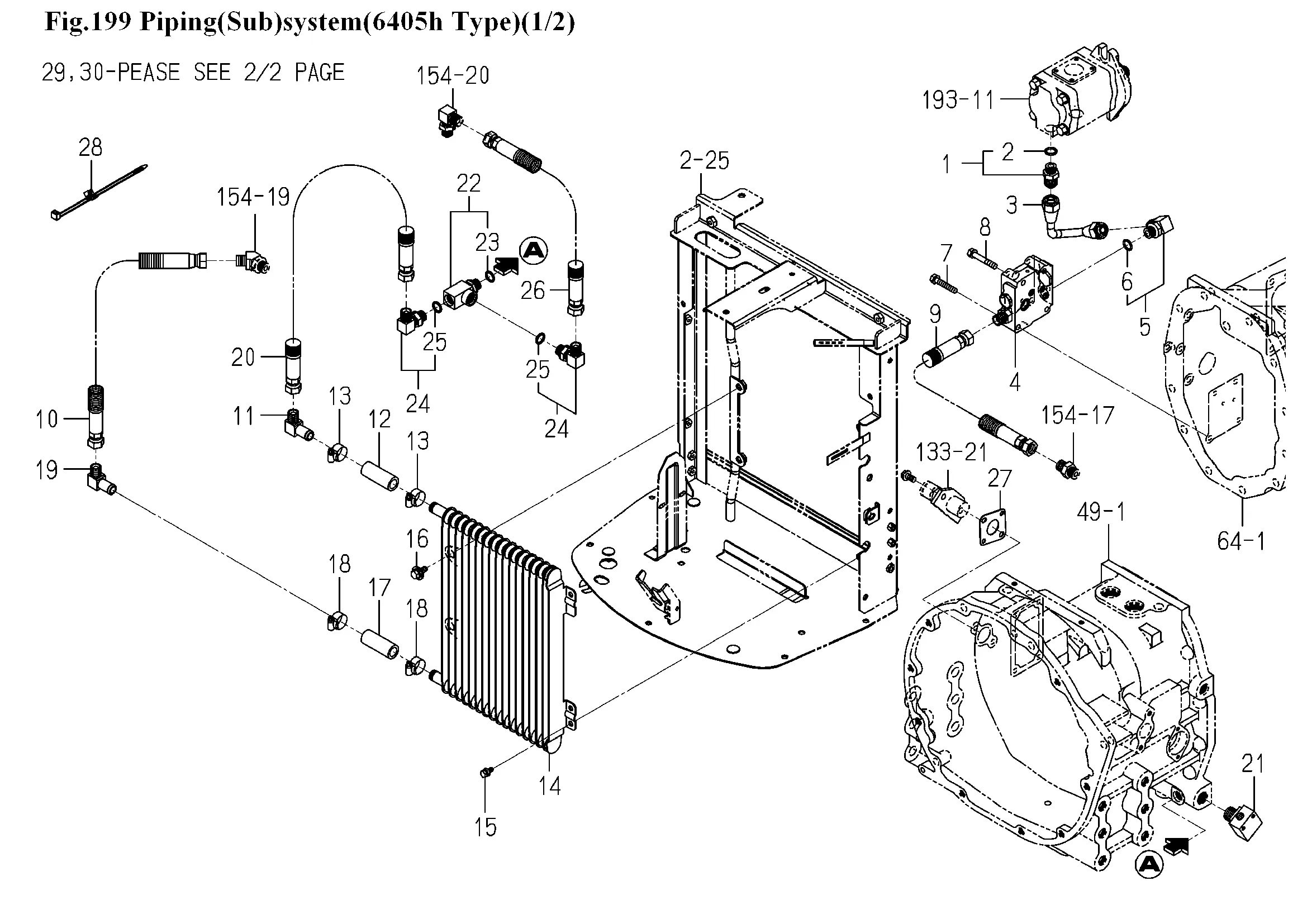

Hydraulikpumpe, Ölkühler
Ersatzteile (54 Teile)
1
ADAPTER/PF3/8 ASSY
2
O-RING/1B,P14
3
PIPE/DEL/SUB/H COMP
4
VALVE/REDUCE/00 ASSY
5
ADAPTER/L/PF3/8 ASSY
6
O-RING/1B,P14
7
V211-260-804-50
8
V211-260-805-00
9
1837-509-600-20
10
1794-509-820-10
11
ADAPTER/L/G3/8
12
HOSE/60/E4
13
J061-114-024-00
14
COOLER/OIL ASSY
15
BOLT/SP
16
BOLT/M8X20(22)
17
HOSE/60/E4
18
J061-114-024-00
19
ADAPTER/L/G3/8
20
1801-509-310-20
21
ADAPTER/TENP
22
ADAPTER/G3/8ASSY
23
O-RING/1B,P14
24
ADAPTER/L/G3/8 ASSY
25
O-RING/1B,P14
26
1837-509-620-20
27
1815-509-032-00
28
1560-666-004-00
29
1440-105-006-00
30
FLANGEBOLT/M8X16
31
FILTER/LINE ASSY
32
Hydraulikfilter
33
FLANGEBOLT/M8X16
34
1747-509-052-00
35
V231-361-001-60
36
ADAPTER/L/G1/2 ASSY
37
O-RING/1B,P14
38
1747-509-570-10
39
ADAPTER/90/G/1/ ASSY
40
RING/O
41
1747-509-051-00
42
V231-360-802-00
43
1738-508-210-10
44
1747-509-510-00
45
O-RING/1A,P28
46
1675-508-004-10
47
J061-224-032-00
48
ADAPTER ASSY
49
O-RING/1B,S24
50
PIPE/CON/H COMP
51
ADAPTER/L/PF1/4 ASSY
52
O-RING/1B,P11
53
ADAPTOR/PF1/4 ASSY
54
O-RING/1B,P11
