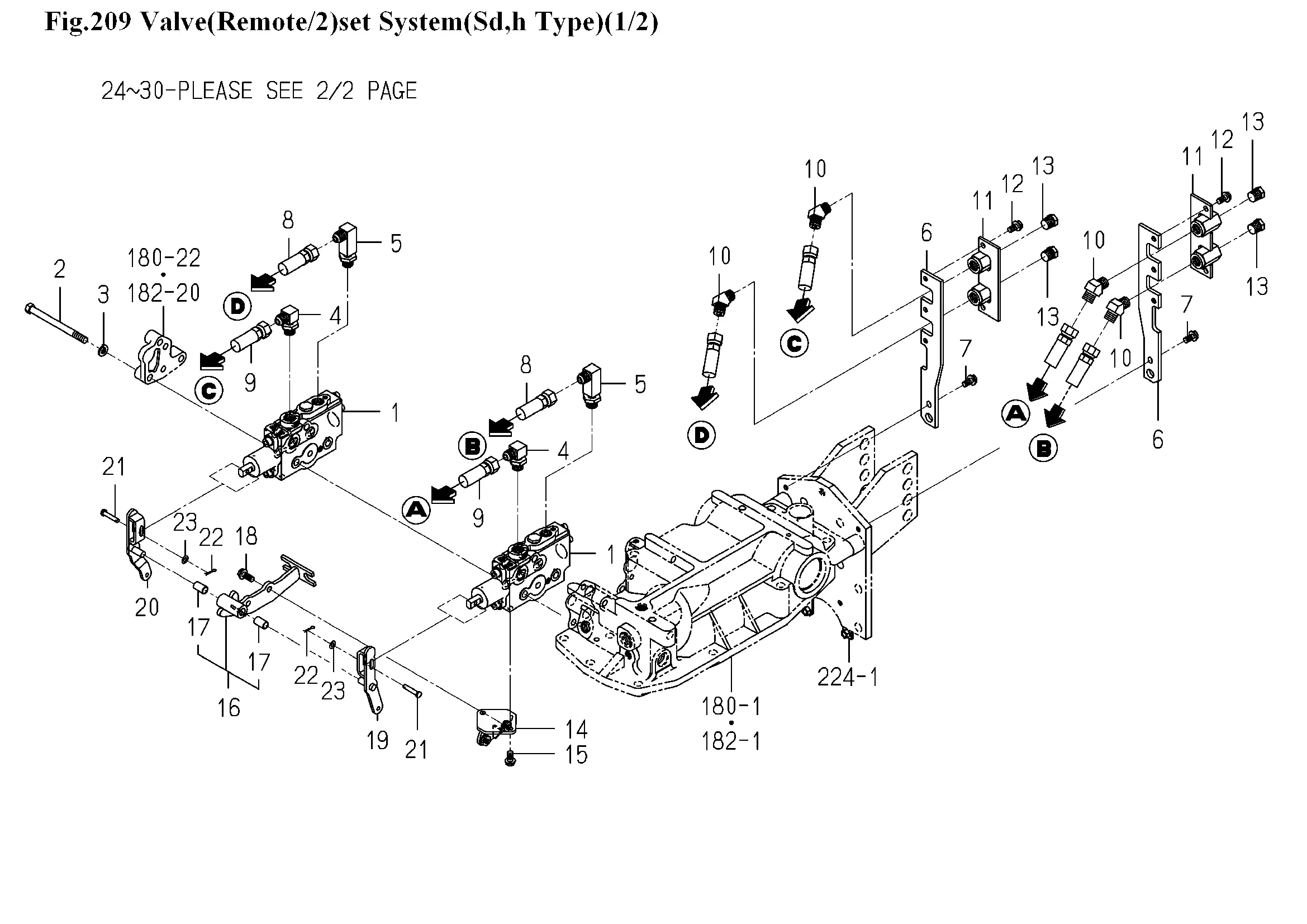

Zusatzsteuergerät
Ersatzteile (35 Teile)
1
VALVE/CONTROL ASSY
2
BOLT/M10X120
3
WASHER,SP/M10
4
CONNECTOR
5
CONNECTOR/L
6
1742-512-001-20
7
FLANGEBOLT/M8X16
8
1744-512-250-10
9
1744-512-260-10
10
ADAPTER/45/R3/8XG3/
11
1815-512-310-00
12
FLANGEBOLT/M8X16
13
PLUG/SCREW/SEAL
14
1815-512-240-10
15
FLANGEBOLT/M8X16
16
1815-512-500-00
17
BUSH/10X12X20
18
V231-360-802-00
19
1815-512-520-00
20
1815-512-530-00
21
PIN/06X31
22
PIN/SNAP
23
V411-260-006-00
24
CABLE/FIRST ASSY
25
CABLE/SECOND ASSY
26
JOINT/BALL/M06
27
V301-260-006-00
28
NUT/FLANGE/M06
29
BRACKET/LEVER COMP
30
FLANGEBOLT/M8X16
31
LEVER/SUBCON ASSY
32
BUSH/10X12X15
33
1815-512-001-10
34
1719-312-001-00
35
GRIP/THROTTLE
