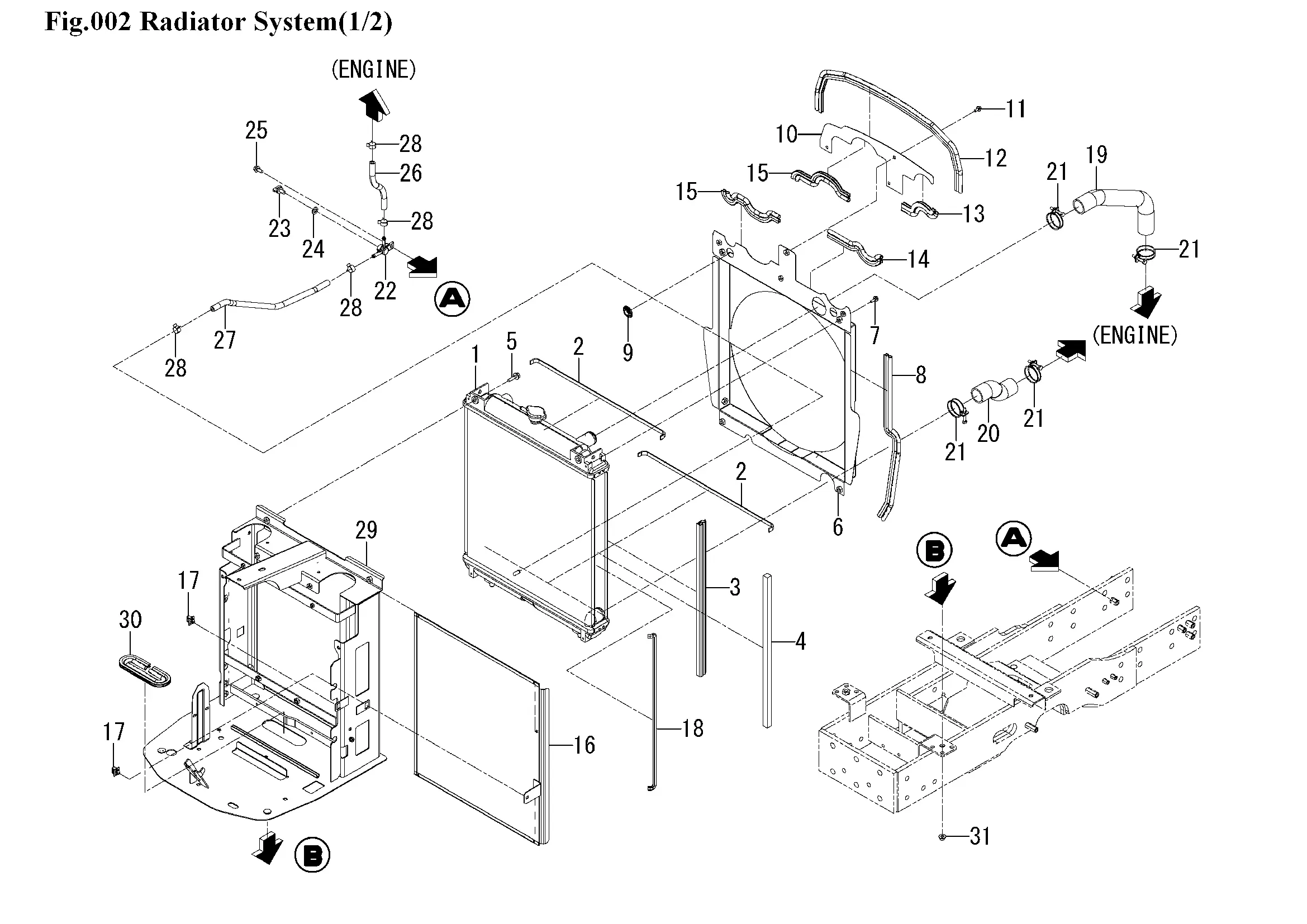

Kühler
Ersatzteile (54 Teile)
1
RADIATOR ASSY
2
INSULATOR
3
INSULATOR/475
4
INSULATOR/15X15X470
5
1746-803-003-00
6
1817-102-240-10
7
1746-804-002-00
8
TRIM/510
9
3670-272-001-00
10
1817-102-001-00
11
1746-804-001-00
12
INSULATOR/700
13
INSULATOR/140
14
1636-102-009-00
15
INSULATOR/220
16
1817-102-260-00
17
LATCH ASSY
18
PAD/520
19
HOSE/RADIATOR/INLET
20
HOSE/RADIATOR/OUTLET
21
CLAMP/WIRE/36-44
22
CONNECTOR
23
1424-101-203-00
24
PACKING
25
1746-804-003-00
26
HOSE/230
27
3805-304-005-00
28
CLIP/HOSE/14.7-15.9
29
1817-102-210-20
30
TRIM/320
31
1746-816-001-00
32
BUSH,LEVER
33
1560-666-004-00
34
TRIM/50
35
1801-102-280-00
36
1746-817-001-00
37
WASHER,PL/M8
38
3673-641-004-00
39
1801-102-290-30
40
PIN/SNAP
41
1801-102-004-00
42
RESERVETANK ASSY
43
CAP
44
PACKING
45
1690-102-214-00
46
1690-102-215-00
47
1690-102-216-00
48
HOSE/RUBBER
49
BAND,WIRE/140
50
1792-102-270-10
51
TUBE/07X09X30
52
1815-802-001-00
53
NET/SIDE/RH
54
CLIP(B)
