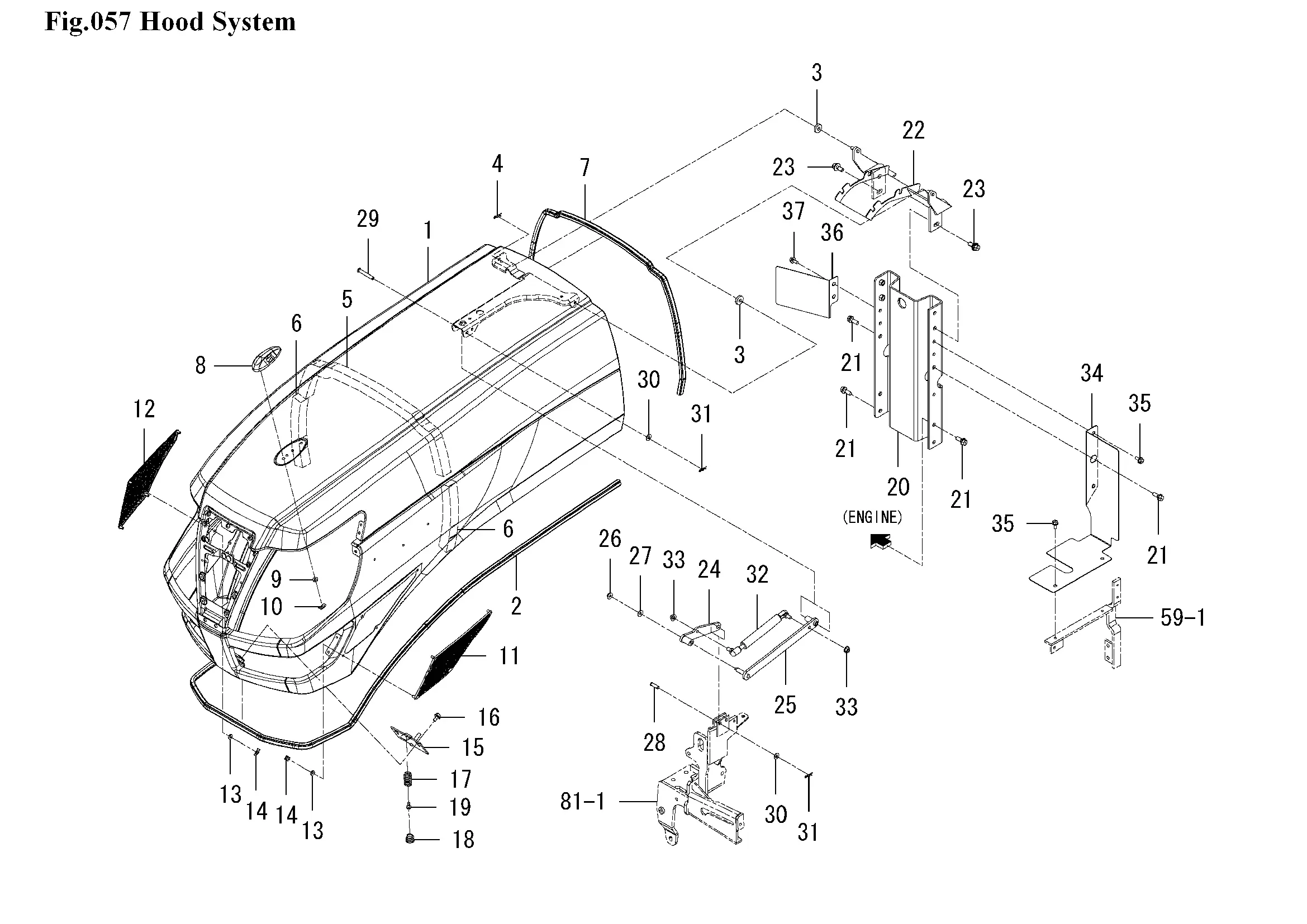

Motorhaube
Ersatzteile (37 Teile)
1
1817-601-200-10
2
INSULATOR/2920
3
CUSHION/RUBBER/10X25
4
PIN/SNAP
5
INSULATOR
6
INSULATOR/30X30X260
7
INSULATOR/HOOD
8
ORNAMENT
9
WASHER/6X14X3
10
NUT,SPEED/M6
11
NET/LH
12
NET/RH
13
WASHER/6X14X3
14
NUT,SPEED/M6
15
1801-601-270-10
16
Schraube
17
1773-611-001-10
18
1773-611-003-10
19
SCREW/SP
20
1817-601-210-00
21
BOLT,S/M10X25/7T
22
1817-601-220-10
23
BOLT,SP/M10X25/7T
24
1817-601-250-00
25
1801-601-280-10
26
NUT,WASHER/M6
27
1146-601-002-00
28
PIN/08X25
29
1750-312-054-10
30
WASHER,PL/M8
31
PIN/SNAP
32
DAMPER/HOOD ASSY
33
Kombimutter-M8
34
1817-601-003-00
35
FLANGEBOLT/M8X16
36
1817-601-004-00
37
FLANGEBOLT/M8X16
