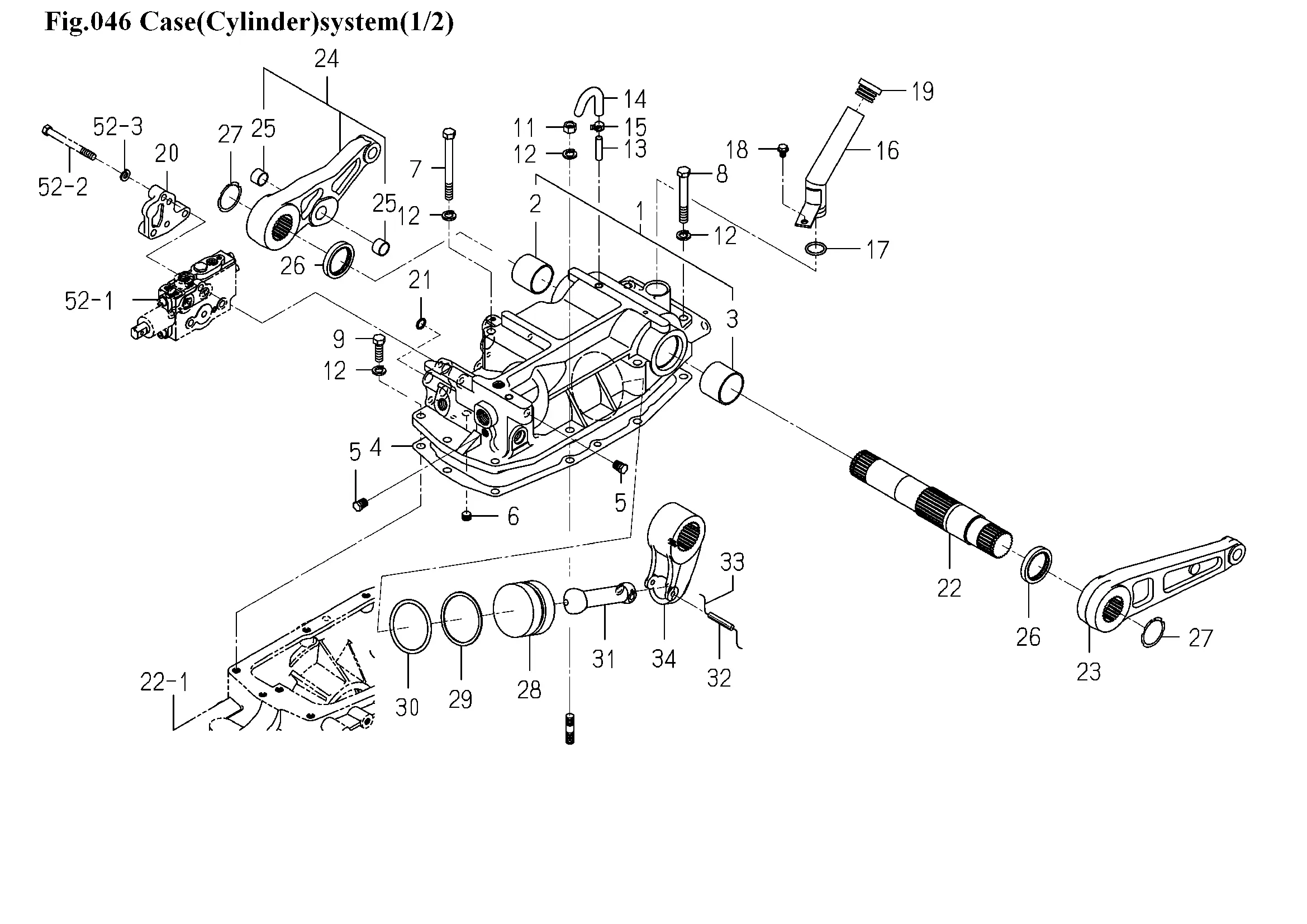

Heckhydraulik
Ersatzteile (51 Teile)
1
Gehäuse, Zylinder
2
BUSH/45X50X42
3
BUSH/50X55X42
4
GASKET/CASE/CYLINDER
5
PLUG/SCREW/SEAL
6
PLUG/SCREW/SEAL
7
V201-361-212-00
8
BOLT/M12X90/7T
9
V201-361-203-50
10
STUD/M12X32/7T
11
V304-460-012-00
12
WASHER,SP/M12
13
PIPE,BREATHER
14
1716-501-006-10
15
J062-138-148-00
16
1742-501-210-10
17
O-RING/1B,P26,HS90
18
V231-360-801-20
19
CAP/OIL(30)
20
COVER
21
O-RING/1B,P14
22
BAR
23
ARM/LIFT/LH
24
ARM/LIFT/RH/SUB ASSY
25
1734-501-222-10
26
SEAL,OIL/TC45609
27
V706-140-045-00
28
PISTON
29
RING
30
O-RING/1B,P75
31
ROD
32
V580-140-805-00
34
Hebel
35
PLATE
36
BOLT/M14X30/7T
37
WASHER,SP/M14
38
CYLINDER/113 ASSY
39
PISTON/ROD/109 COMP
40
SEAL/DUST/DKBI/40
41
PACKING. ROD
42
V707-140-055-00
43
STOPPER,PISTON
44
NIPPLE/GREASE
45
PIN/22X89
46
PIN COMP
47
FLANGEBOLT/M8X16
48
1801-509-250-00
49
ADAPTER/L/G3/8 ASSY
50
O-RING/1B,P14
51
ADAPTER/90
52
CLAMP/28X55
