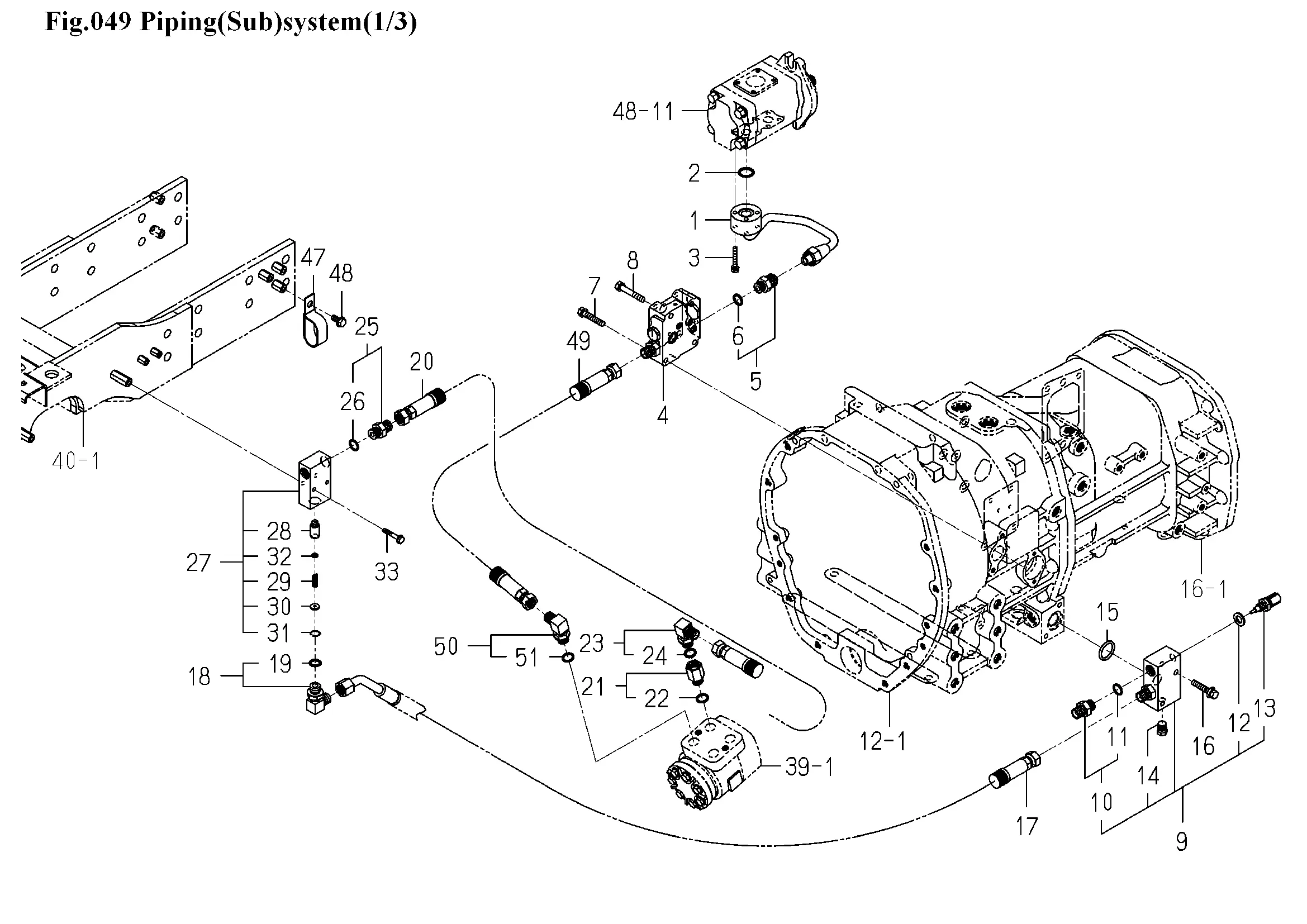

Hydraulikpumpe, Ölkühler
Ersatzteile (80 Teile)
1
PIPE/DEL/SUB/H COMP
2
O-RING/1B,P20
3
BOLT,S/M6X40/7T
4
VALVE/REDUCE/00 ASSY
5
ADAPTER/PF3/8 ASSY
6
O-RING/1B,P14
7
V211-260-804-50
8
V211-260-805-00
9
Adapter, kpl.
10
ADAPTER/PF3/8 ASSY
11
O-RING/1B,P14
12
1757-509-015-00
13
SENSOR/TEMP ASSY
14
PLUG/SCREW/SEAL
15
O-RING/1B,P26,HS90
16
BOLT,SP/M8X45
17
1802-509-250-00
18
ADAPTER/L/G3/8 ASSY
19
O-RING/1B,P14
20
1801-509-250-00
21
ADAPTER/G3/8 ASSY
22
O-RING/1B,P14
23
ADAPTER/L/G3/8 ASSY
24
O-RING/1B,P14
25
ADAPTER/PF3/8 ASSY
26
O-RING/1B,P14
27
Druckbegrenzungsventil, kpl.
28
Einsatz
29
SPRING/HC024
30
Scheibe 4/14/2
31
RING,SNAP/15 C
32
COLLAR/06X10X02
33
FLANGEBOLT/M6X35
34
COOLER/OIL ASSY
35
BOLT,SP/M6X16
36
BOLT/M8X20(22)
37
1817-509-200-00
38
HOSE/60
39
J061-114-024-00
40
ADAPTER/L/G3/8
41
1817-509-210-00
42
HOSE/60
43
J061-114-024-00
44
ADAPTER/L/G3/8
45
ADAPTER/PF3/8 ASSY
46
O-RING/1B,P14
47
CLAMP,RADIATOR HOSE
48
FLANGEBOLT/M8X16
49
Schlauch, 750
50
ADAPTER/L/G3/8 ASSY
51
O-RING/1B,P14
52
FILTER/LINE ASSY
53
Hydraulikfilter
54
FLANGEBOLT/M8X16
55
1747-509-052-00
56
V231-361-001-60
57
1747-509-051-00
58
V231-360-802-00
59
Filter, Hydraulikleitung
60
1747-509-510-00
61
O-RING/1A,P28
62
Schlauch
63
J061-224-032-00
64
ADAPTER ASSY
65
O-RING/1B,S24
66
ADAPTER/L/G1/2 ASSY
67
O-RING/1B,P14
68
HOSE/400 ASSY
69
ADAPTER/90/G/1/ ASSY
70
RING/O
71
ADAPTER/90/G/1/ ASSY
72
RING/O
73
HOSE/400 ASSY
74
ADAPTER/L/G1/2 ASSY
75
O-RING/1B,P14
76
PIPE/CON/H COMP
77
ADAPTER/L/PF1/4 ASSY
78
O-RING/1B,P11
79
ADAPTOR/PF1/4 ASSY
80
O-RING/1B,P11
