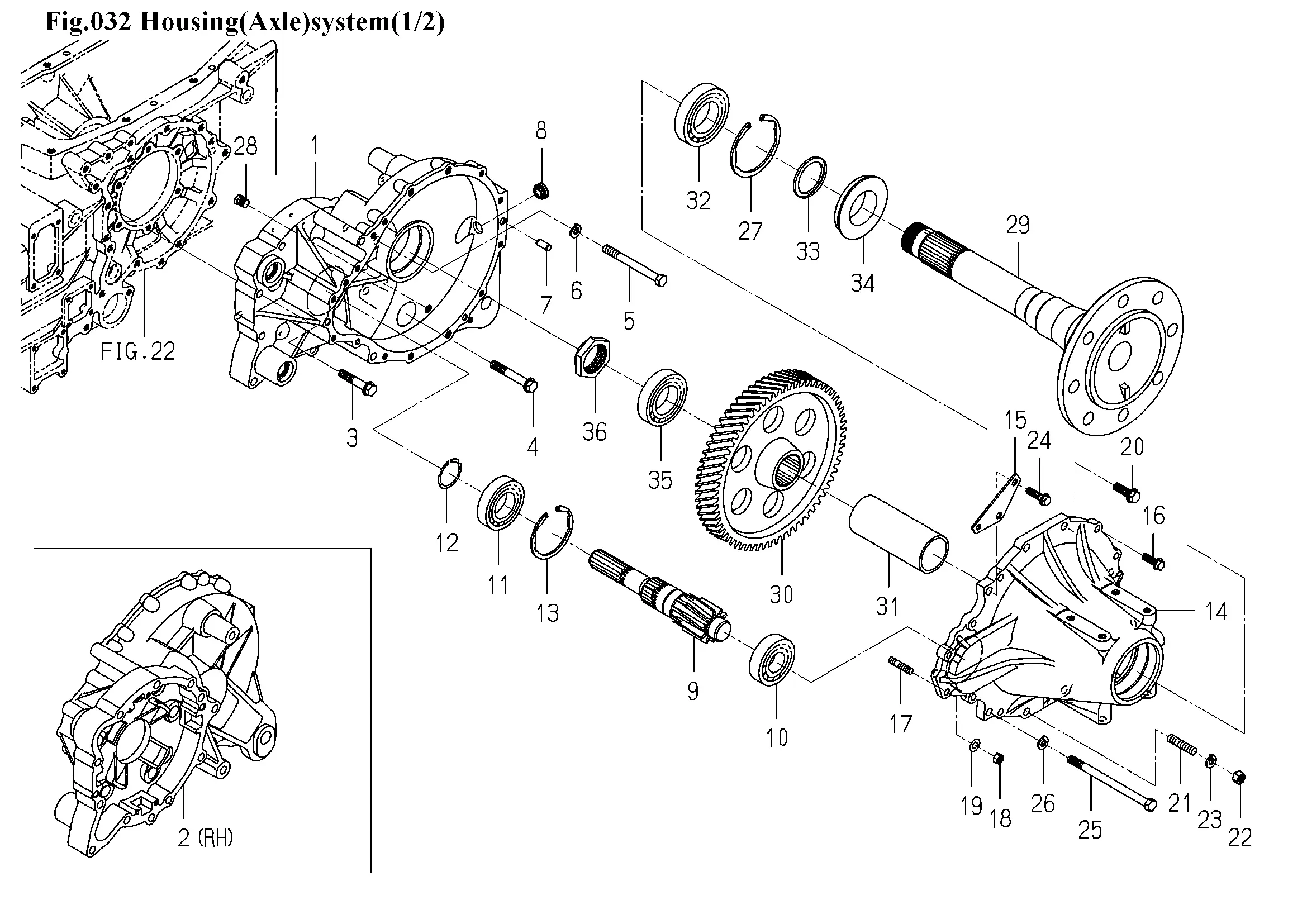

Achsgehäuse, hinten
Ersatzteile (40 Teile)
1
1802-306-001-00
2
1802-306-002-10
3
FLANGEBOLT/M12X60
4
V231-361-208-00
5
BOLT/M12X160/7T
6
WASHER,SP/M12
7
PIN,ST,B/10X24
8
GAUGE/LEBEL
9
1796-306-001-00
10
V600-410-630-70
11
BEARING,RB/6209
12
V706-140-045-00
13
RING,SNAP/R85
14
1796-306-006-10
15
1734-306-010-00
16
FLANGEBOLT/M10X30
17
V251-441-003-00
18
V304-460-010-00
19
WASHER,SP/M10
20
FLANGEBOLT/M12X35
21
V251-441-203-50
22
V304-460-012-00
23
WASHER,SP/M12
24
V231-361-003-50
25
1734-306-008-00
26
WASHER,SP/M12
27
V707-140-100-00
28
PLUG/SCREW/SEAL
29
SHAFT/WHEEL
30
1796-306-002-00
31
COLLAR/56X65X156
32
BEARING,RB/6211
33
COLLAR/55X70X4
34
SEAL/OIL/UNITIGHTS
35
BEARING,RB/6201R
36
NUT/M50X1.5
37
Bolzen M22x62
38
1581-307-005-00
39
1757-306-004-00
40
Federring A22 DIN 127
