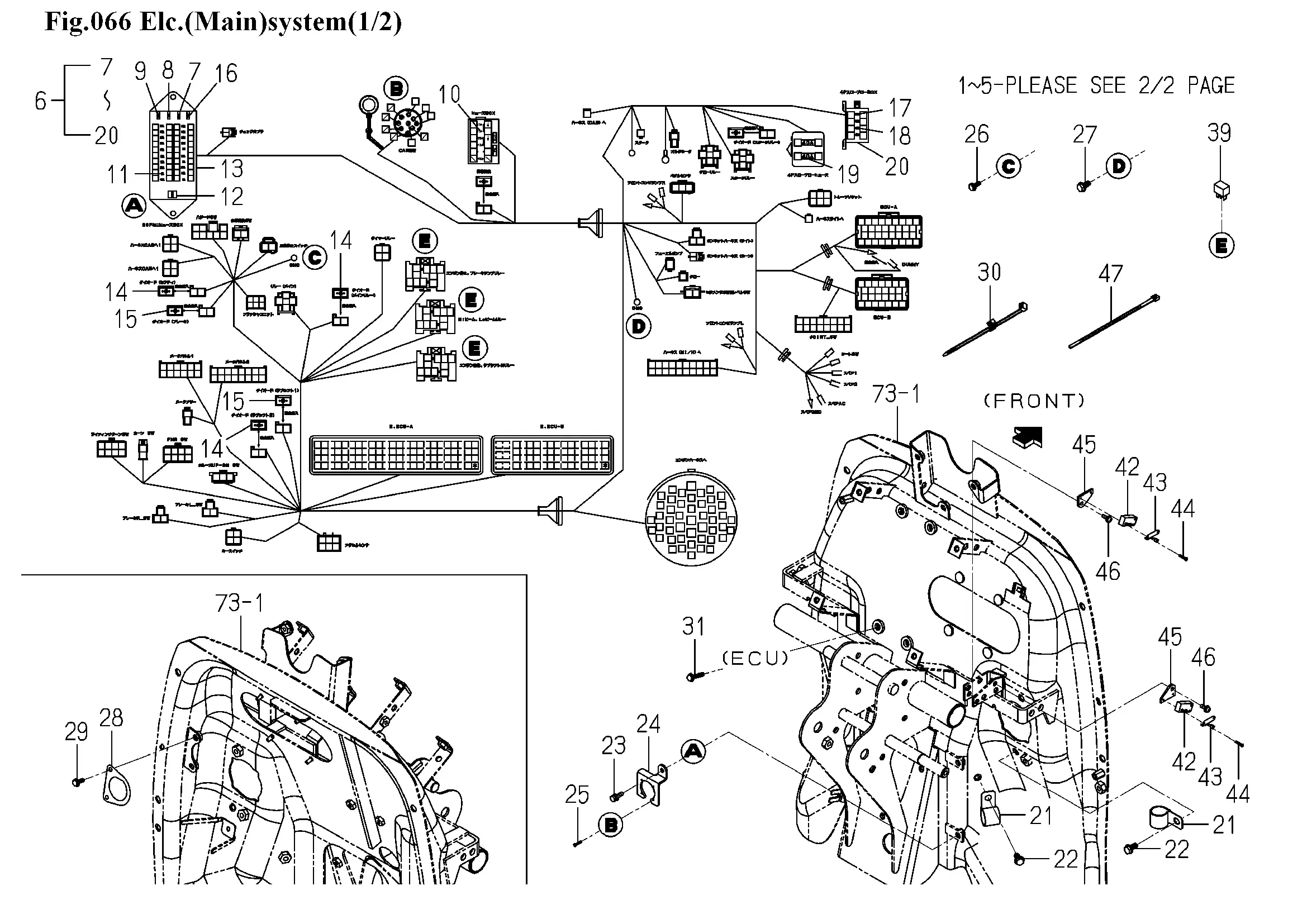

Schalter, Relais, Zündschloss
Ersatzteile (60 Teile)
1
SWITCH/ROTALY/E SET
2
RINGNUT
3
1729-652-273-00
4
KEY
5
1342-402-006-00
6
Kabelbaum
7
FUSE/BLADE/32V20A
8
FUSE/BLADE/32V15A
9
FUSE/BLADE/32V10A
10
FUSE/BLADE/32V05A
11
Sicherung 3A (mini)
12
TOOL/FUSE
13
COVER/FUSE
14
DIODE/3A
15
Diode
16
FUSE,BLADE/32
17
FUSE/SLOW BLOW/60A
18
FUSE/SLOW BLOW/50A
19
FUSE/SLOW BLOW/40A
20
COVER/FUSE
21
CLIP B
22
FLANGEBOLT/M8X16
23
V210-360-602-00
24
1817-652-001-10
25
SCREW,SP/M3X16
26
FLANGEBOLT/M6X16
27
FLANGEBOLT/M8X16
28
1817-652-002-00
29
FLANGEBOLT/M6X16
30
1560-666-004-00
31
FLANGEBOLT/M6X30
32
1817-650-320-10
33
V210-260-605-00
34
1739-681-220-10
35
RELAY/35A ASSY
36
V120-365-001-60
37
1817-650-310-00
38
FLANGEBOLT/M6X16
39
RELAY/5P ASSY
40
1742-650-320-10
41
4131-112-001-00
42
SWITCH ASSY
43
ACTUATOR ASSY
44
SCREW,SP/M3X16
45
1729-652-006-00
46
V120-365-001-60
47
BAND,WIRE/140
48
1817-652-510-00
49
FLANGEBOLT/M8X16
50
1757-730-004-00
51
SWITCH ASSY
52
SWITCH/HAZARD ASSY
53
BULB/LAMP/14V60MA
54
Schalter
55
3801-283-302-00
56
1342-402-006-00
57
1815-652-310-20
58
1800-652-340-40
59
SCREW,SEMS/M6X16
60
1342-402-006-00
