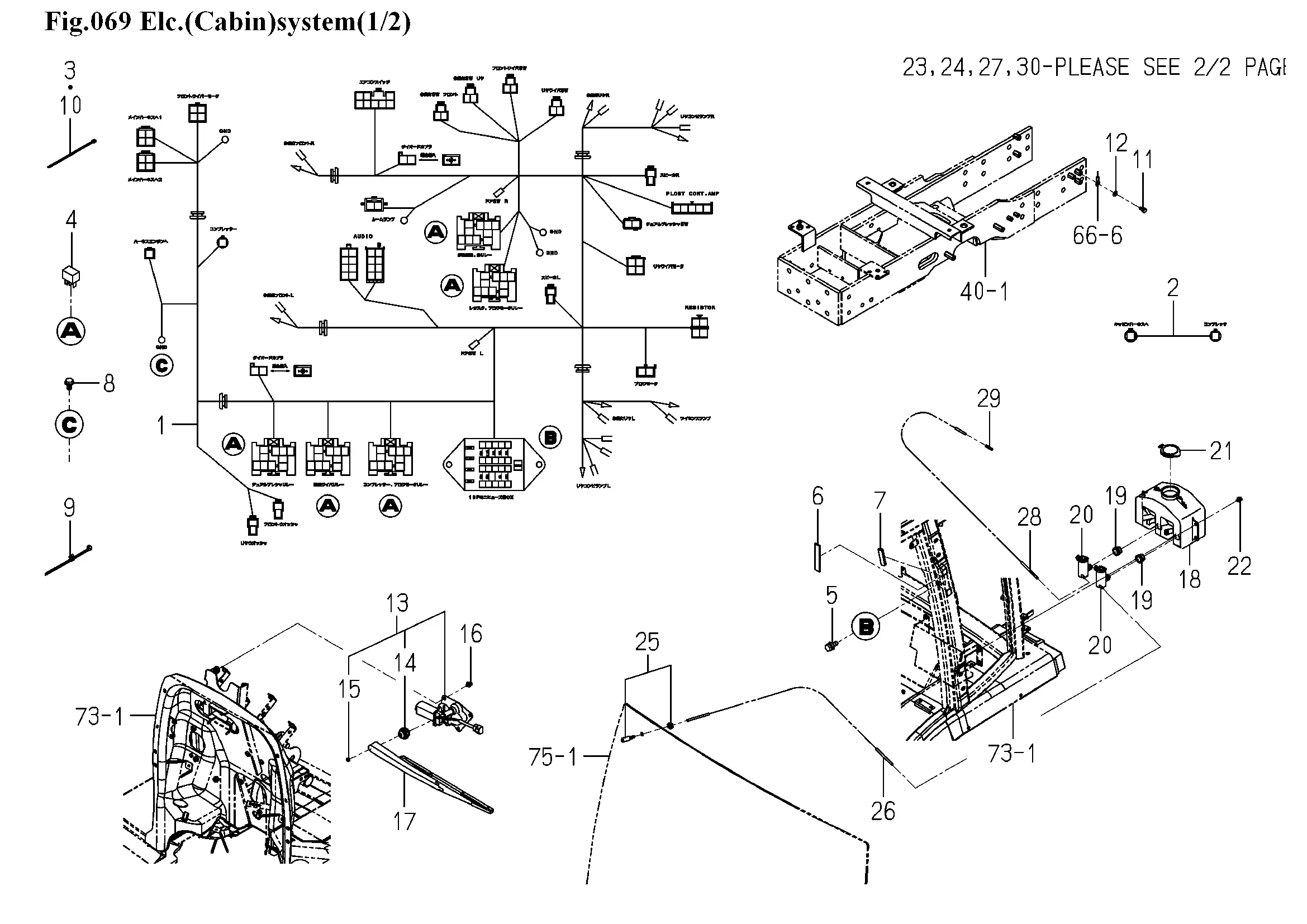

Elektrik, Kabine oben
Ersatzteile (59 Teile)
1
1815-658-210-20
2
1817-658-210-00
3
BAND,WIRE/140
4
RELAY/5P ASSY
5
BOLT,SP/M6X16
6
1792-658-006-00
7
1568-701-001-10
8
FLANGEBOLT/M6X12
9
1560-666-004-00
10
1342-402-006-00
11
V211-260-801-60
12
WASHER,PL/M8
13
MOTOR/WIPER/175 ASSY
14
GROMMET
15
V301-260-006-00
16
BOLT/M6X16X16
17
Wischerarm
18
TANK/WASHER/2M
19
GROMMET/W/T
20
PUMP/W/T
21
CAP/TANK/WASHER
22
BOLT/M6X16X16
23
Switch Wiper Assy
24
1746-658-002-00
25
Nozzle Washer Assy
26
1729-658-002-00
27
CAP/22X38
28
1690-658-003-00
29
VALVE/CHECK
30
LAMP/WORKING/35 ASSY
31
VALVE/HALOGEN/12V35W
32
STAY
33
FLANGEBOLT/M6X16
34
1790-705-008-00
35
REAR DIFF SWITCH
36
DIFF LOSTING MARK
37
1711-666-052-10
38
1711-666-053-10
39
1800-658-001-00
40
1792-658-001-20
41
SCREW,SP/M6X16
42
COVER/AUDIO
43
RIVET/PUSH/07
44
SPEAKER ASSY
45
COVER/SPEAKER
46
V111-174-001-60
47
V360-260-004-00
48
1800-720-017-00
49
LAMP/ROOM ASSY
50
1792-658-301-00
51
1792-658-302-00
52
1792-658-310-10
53
SCREW,SP/M5X20
54
V210-360-601-20
55
SWITCH/DOOR ASSY
56
NUT/M10
57
1792-658-005-00
58
RIVET/PUSH/07
59
CLAMP,WINKER B
