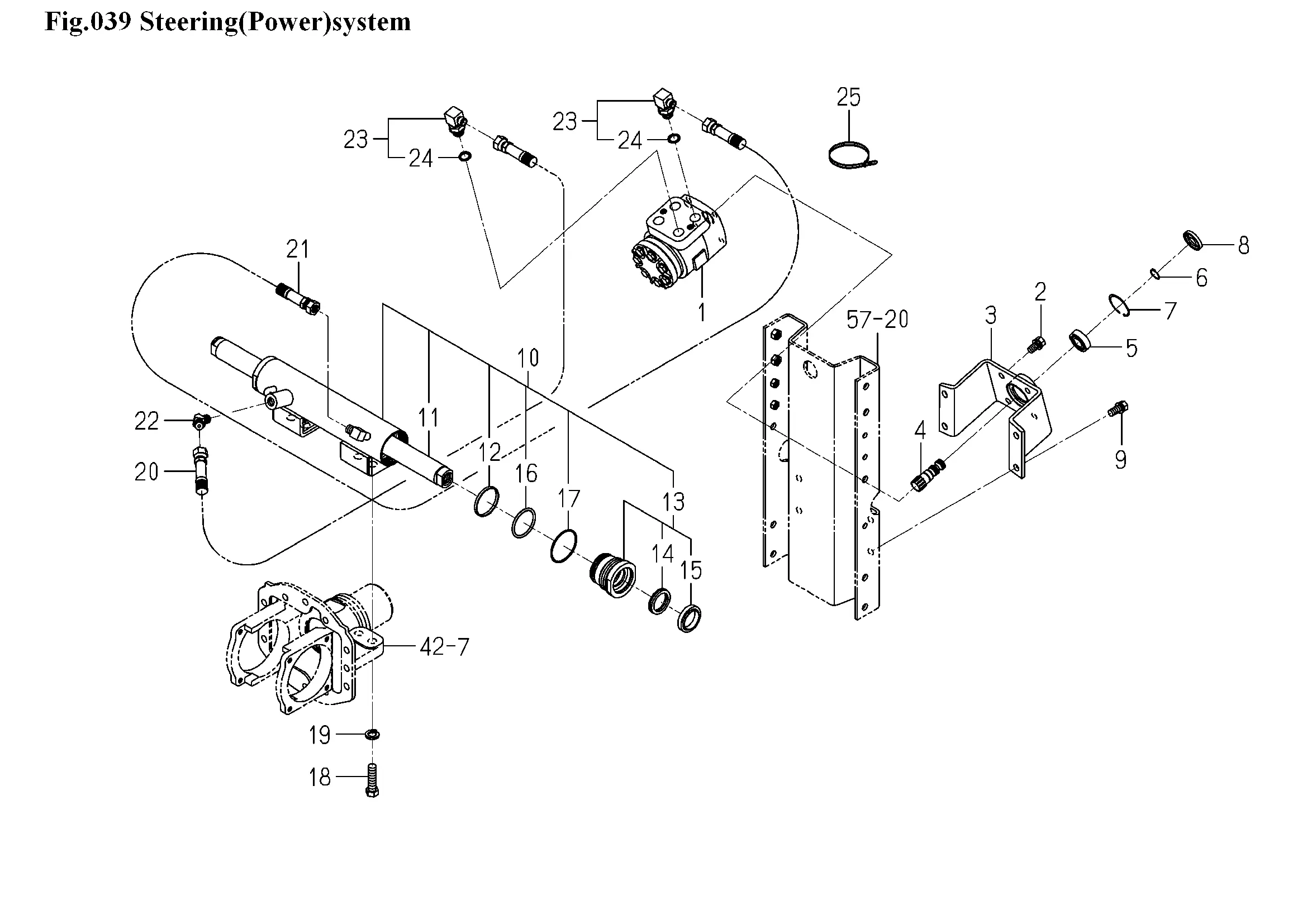

Lenkzylinder
Ersatzteile (25 Teile)
1
1646-407-670-20
2
BOLT,S/M10X20/7T
3
1817-407-210-10
4
SHAFT
5
V600-430-600-30
6
RING,SNAP/17 C
7
RING,SNAP/35 C
8
SEAL,OIL/VC17355
9
BOLT,S/M10X25/7T
10
K167-007-000-10
11
ROD/PISTON COMP
12
PACKING/PISTON
13
COVER/ROD SET
14
PACKING/ROD
15
SEAL/DUST
16
O-RING/1B,P44
17
O-RING/1A,S53
18
Feingewindeschraube, M12x1,25x45
19
WASHER,SP/M12
20
1801-407-230-00
21
1802-407-200-10
22
ADAPTER/45DEG
23
ELBOW/90DEG ASSY
24
O-RING/1B,P14
25
1342-402-006-00
