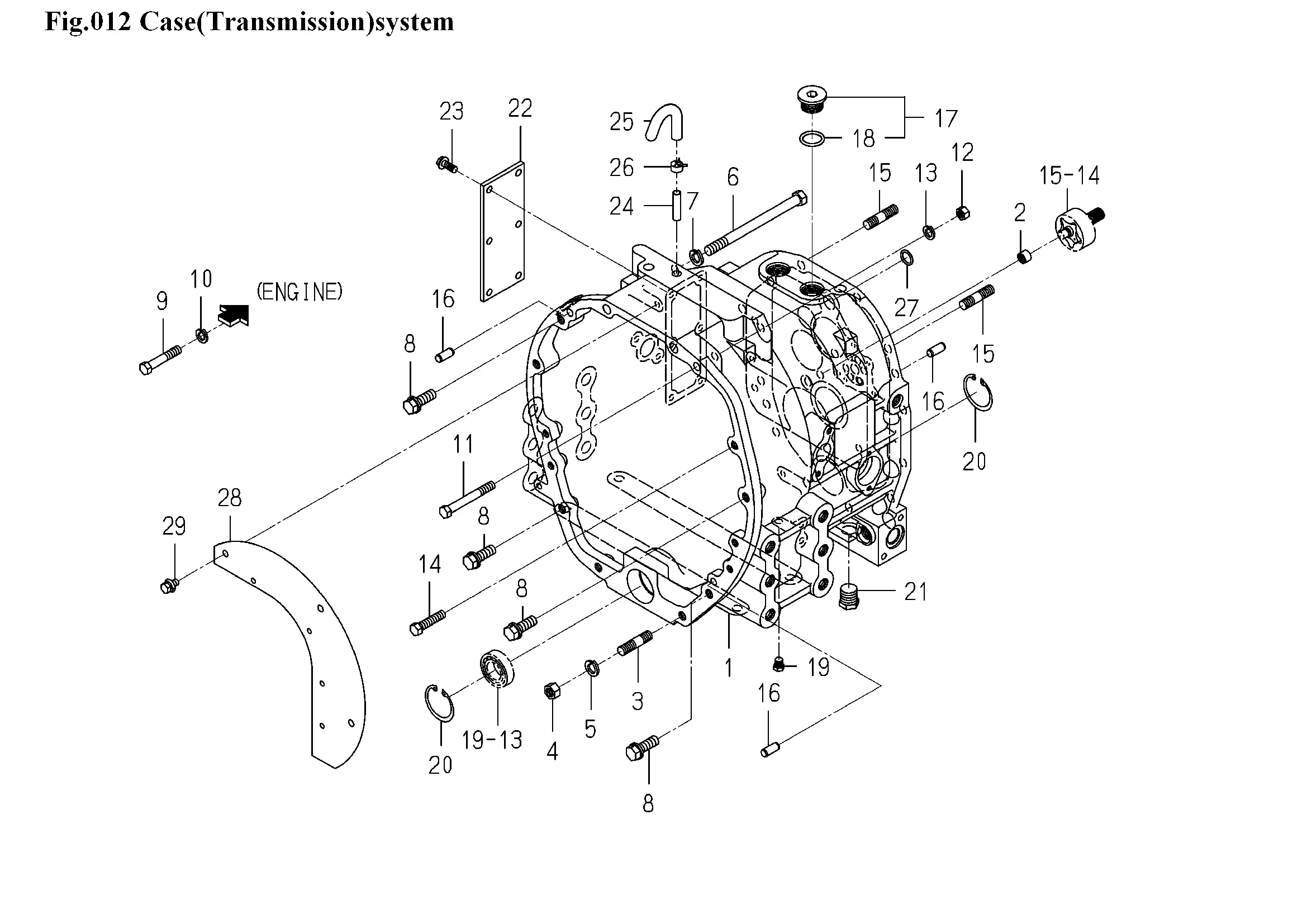

Kupplungsgehäuse
Ersatzteile (29 Teile)
1
CASE/TRANSMISSION/F/
2
1747-201-058-00
3
STUD/M12X32/7T
4
V304-460-012-00
5
WASHER,SP/M12
6
BOLT/M12X160/7T
7
WASHER,SP/M12
8
6901-931-235-00
9
V201-361-005-50
10
WASHER,SP/M10
11
V201-361-008-00
12
V304-460-010-00
13
WASHER,SP/M10
14
V211-561-004-50
15
STUD/M12X32/7T
16
PIN,ST,B/10X24
17
PLUG/G3/4 ASSY
18
O-RING/1B,P24
19
PLUG/SCREW/SEAL
20
RING,SNAP/47 C
21
PLUG/SCREW/SEAL
22
1803-201-053-00
23
V231-360-802-00
24
PIPE,BREATHER
25
1716-501-006-10
26
J062-138-148-00
27
O-RING/1A,P16
28
1803-201-052-00
29
V211-660-801-60
