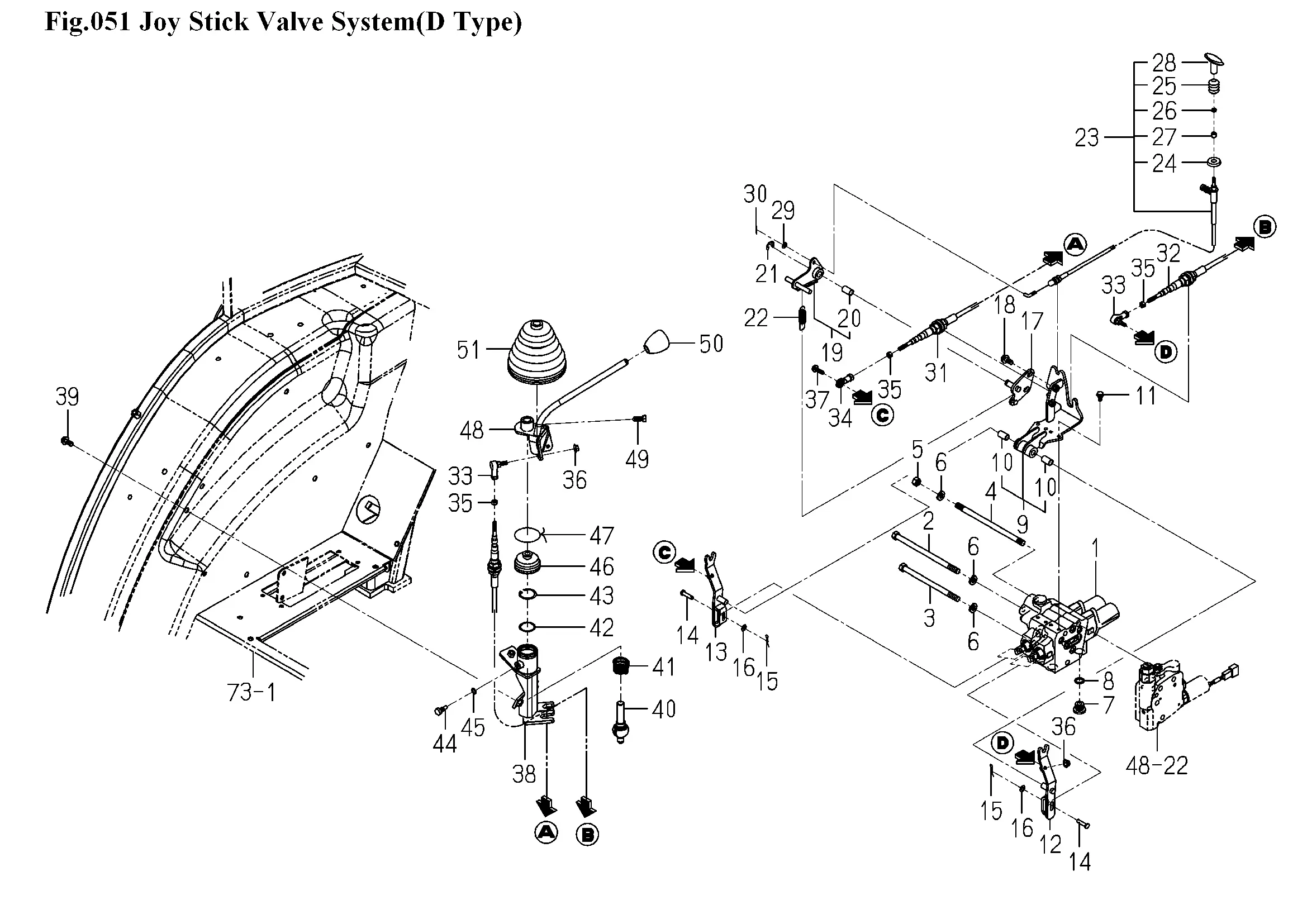

Kreutzhebel, Joy Stick
Ersatzteile (50 Teile)
1
Steuerventil kpl.
2
V201-261-017-00
3
V201-261-015-00
4
1742-511-002-00
5
NUT/M10
6
WASHER,SP/M10
7
PLUG(G3/8)
8
O-RING/1B,P14
9
HOLDER/CABLE ASSY
10
BUSH/10X12X20
11
FLANGEBOLT/M6X12
12
1815-511-280-20
13
ARM/BUCKET COMP
14
PIN/06X25
15
PIN/SNAP
16
V411-260-006-00
17
BRACKET/LOCK COMP
18
FLANGEBOLT/M8X16
19
ARM/LOCK ASSY
20
BUSH/10X12X20
21
RING,SNAP/9 E
22
SPRING/HE055
23
Bowdenzug, Arretierung, kpl.
24
1742-511-791-00
25
1742-511-792-00
26
1742-511-793-00
27
1742-511-794-00
28
KNOB
29
V411-260-005-00
30
PIN,SPLIT/1.6X15
31
CABLE/BOOM ASSY
32
CABLE/BUCKET ASSY
33
JOINT/BALL/M06
34
ROD/END
35
V301-260-006-00
36
NUT/FLANGE/M06
37
FLANGEBOLT/M6X20
38
HOLDER/JOY COMP
39
FLANGEBOLT/M8X16
40
Halter, Joy Stick
41
SPRING
42
WASHER/27X32X01
43
RING,SNAP/32 C
44
BOLT/LOCK
45
WASHER/8X12X2
46
BOOT,CHANGE LEVER
48
LEVER/JOY COMP
49
BOLT/M8X16
50
GRIP
51
BOOT/JOY
