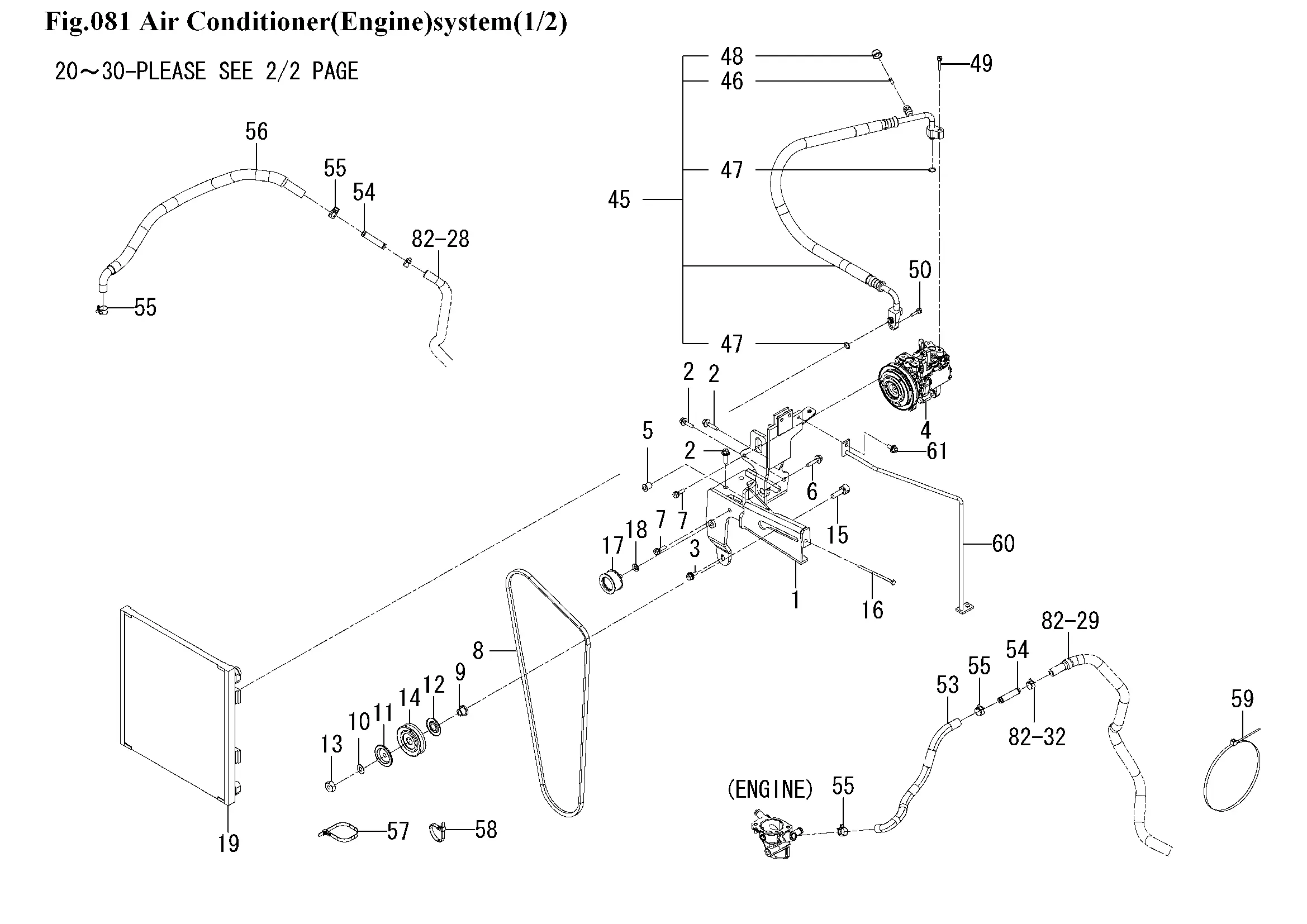

Kompressor, Klimaanlage
Ersatzteile (61 Teile)
1
1817-780-260-20
2
BOLT,SP/M8X30/7T
3
V211-660-802-00
4
COMPRESSOR ASSY
5
1716-780-001-00
6
V211-660-803-50
7
BOLT,S/M8X25/7T
8
Keilriemen, Klimaanlage
9
1599-782-531-10
10
WASHER/W
11
COVER/G1
12
COVER/G2
13
NUT
14
1599-782-540-10
15
SHAFT
16
BOLT/M06X110
17
PULLEY/FT/45X20 ASSY
18
WASHER,SP/M10
19
CONDENSER ASSY
20
BOLT/SP
21
1792-780-290-10
22
1792-780-280-40
23
1815-802-001-00
24
1757-780-002-00
25
1757-780-003-00
26
WASHER/6X24X2
27
1815-802-002-00
28
RECEIVER/DRYER ASSY
29
1729-780-250-10
30
BOLT/SP
31
1759-308-001-00
32
NET/CONDENSER/350X36
33
JOINT/RECEIVER/LH
34
O-RING
35
BOLT/SP
36
PIPE/LIQUID ASSY
37
O-RING
38
BOLT/SP
39
BOLT/S
40
1817-780-280-00
41
1729-780-512-00
42
O-RING
43
PLUG
44
V210-260-603-00
45
1817-780-240-10
46
1729-780-512-00
47
O-RING
48
PLUG
49
V210-260-603-00
50
BOLT/SP
51
1792-780-004-00
52
V210-360-602-00
53
1800-780-005-10
54
1800-780-007-00
55
CLIP/HOSE/18-22
56
HOSE/HEATER/L/800
57
BAND,WIRE/140
58
1342-402-006-00
59
CLAMP
60
1817-780-290-10
61
FLANGEBOLT/M8X16
