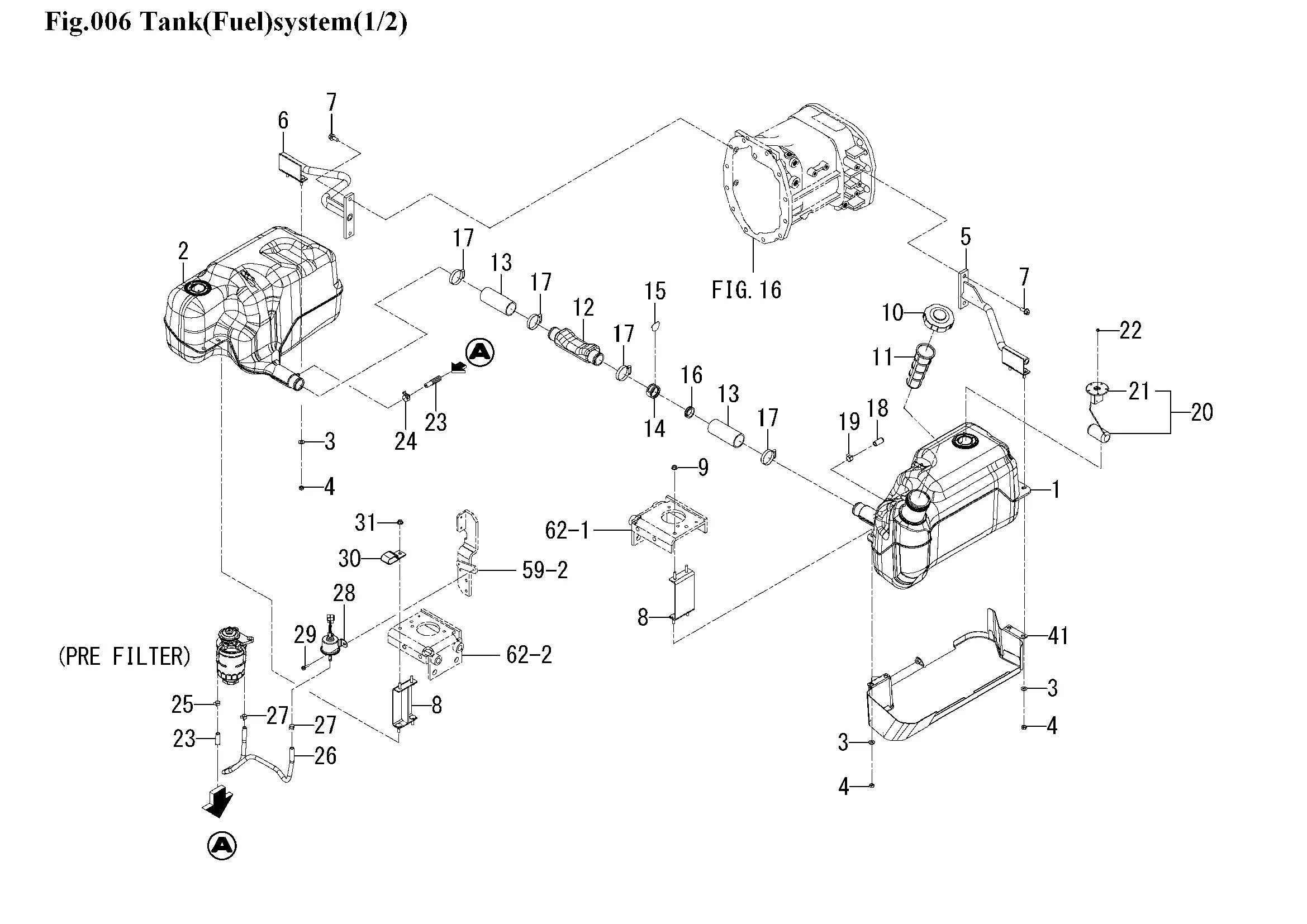

Tank
Ersatzteile (48 Teile)
1
TANK/FUEL/LH
2
TANK/FUEL/RH
3
WASHER,PL/M8
4
1719-312-001-00
5
1801-111-200-00
6
1801-111-500-10
7
BOLT,S/M10X25/7T
8
STAY/TANK/L COMP
9
Kombimutter-M8
10
CAP/FUEL ASSY
11
FILTER/FUEL
12
PIPE/FUEL/UNDER
13
Kraftstoffschlauch
14
1757-111-027-20
15
PLATE/VALVE
16
1817-111-002-00
17
1696-508-002-00
18
1518-111-006-00
19
CLIP/HOSE/14.7-15.9
20
GAUGE/FUEL ASSY
20
Tankgeber
21
PACKING/RUBBER
22
V360-260-004-00
23
HOSE/FUEL/1300 ASSY
24
J062-138-148-00
25
CLIP/HOSE/12.6-13.4
26
1817-111-230-00
27
CLIP/HOSE/12.6-13.4
28
Kraftstoffpumpe
29
FLANGEBOLT/M6X20
30
1560-104-005-50
31
Kombimutter-M8
32
HOSE/FUEL/70
33
HOSE/FUEL/900 ASSY
34
J062-154-167-00
35
1801-111-260-20
36
JOINT/T
37
CLIP/HOSE/14.7-15.9
38
J062-138-148-00
39
1342-402-006-00
40
HOLDER/JE/9-9
41
1816-111-300-00
42
COVER/TANK/E4 COMP
43
1801-111-012-10
44
CUSHION,RUBBER
45
V231-360-801-20
46
Kombimutter-M8
47
PLATE,RUBBER
